Detail overview

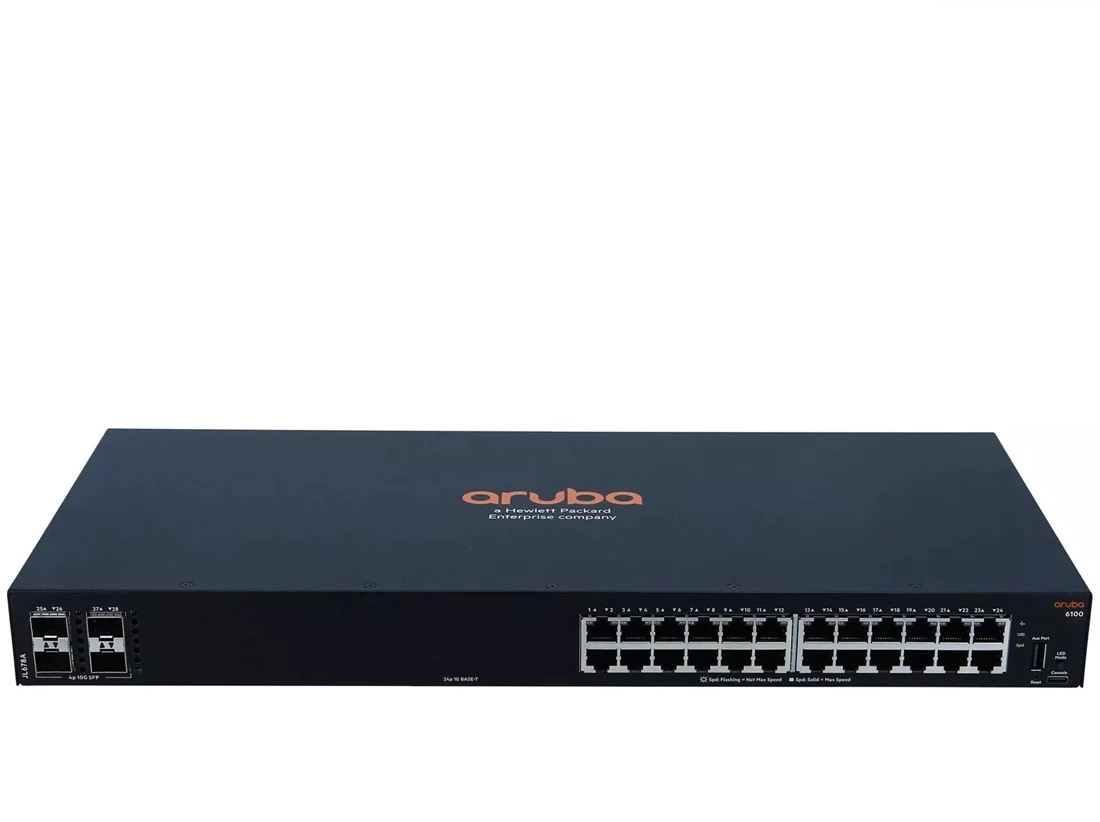

Hpe Jl678a Aruba 6100 24g 4sfp+ Switch - Switch - 28 Ports - Managed - Rack-mountable:

Key Features :

  • Device Type : Switch - 28 Ports - L3 - Managed - Stackable
  • Enclosure Type : Side To Side Airflow Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 Μs ¦ Latency (10 Gbps): 1.8 Μs
  • Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
  • Mac Address Table Size : 8192 Entries
  • Routing Protocol : Igmpv2, Igmpv3
  • Encryption Algorithm : Ssl
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3az
  • Processor : 1 X Arm A9: 1.016 Ghz
  • Ram : 4 Gb Ddr3 Sdram
  • Flash Memory : 16 Gb

    Expansion / Connectivity :
    Interfaces :
  • 24 X 10/100/1000 Base-t Rj-45 ¦ 4 X 1/10gbit Lan Sfp+ ¦ 1 X Usb-c Console ¦ 1 X Usb Type A

    Power :
  • Power Device : Internal Power Supply
  • Power Provided : 65 Watt
  • Voltage Required : Ac 230 V (50/60 Hz)
  • Power Consumption Operational : 15.4 Watt

    Condition : New Open Box
    Availability : In Stock
    Manufacturer Warranty : Full
    Our Warranty : 30 Days

  • Other Available Condtions for this Part
