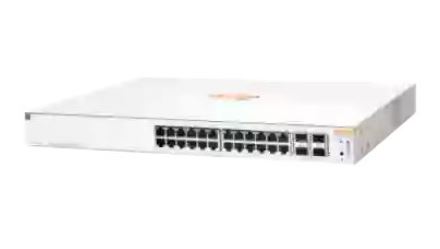

HPE JL683B#ABA Aruba IOn 1930 24G 4sfp+ 195w switch

HPE JL683B#ABA Aruba IOn 1930 24G 4sfp+ 195w switch

Part Number: JL683B#ABA
BRAND: HPE | More NETWORKING from HPE
$455.00
Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE JL683B#ABA Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 195w Switch 28 Ports Managed Rack-mountable :

Key Feature :

  • Device Type : Switch - 28 Ports - L3 - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype Gigabit: Ethernet
  • Ports : 24 X 10/100/1000 (poe) + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe
  • Poe Budget: 195 W
  • Performance: Switching Capacity: 128 Gbps Throughput: 95.23 Mpps Latency (1 Gbps): 2.4 Latency (10 Gbps): 1.3
  • capacity: Link Aggregation Ports: 8 Ipv4 Routes (static): 32 Vlans Supported: 256 Access Control Entries (aces) Per Acl: 480 Packet Buffer Size: 1.5 Mb
  • Mac Address Table Size: 16000 Entries
  • Jumbo Frame Support: 9216 Bytes
  • Routing Protocol: Static Ip Routing
  • Remote Management Protocol: Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
  • Encryption Algorithm: Ssl
  • Authentication Method: Radius
  • Features: Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter, Poe Class 4
  • compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af
  • processor: 1 X Arm Cortex-a9: 800 Mhz
  • ram: 512 Mb Sdram
  • flash Memory: 256 Mb
  • status Indicators: port Status, Power, Poe

    Expansion / Connectivity :
    Interfaces:
  • 24 X 10/100/1000 Base-t Rj-45 Poe - 195 W
  • 4 X 1/10gbit Lan Sfp+

    Power :

  • Power Device: Internal Power Supply
  • Voltage Required: Ac 120/230 V (50/60 Hz)
  • Power Consumption Operational: 234 Watt

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
