Detail overview

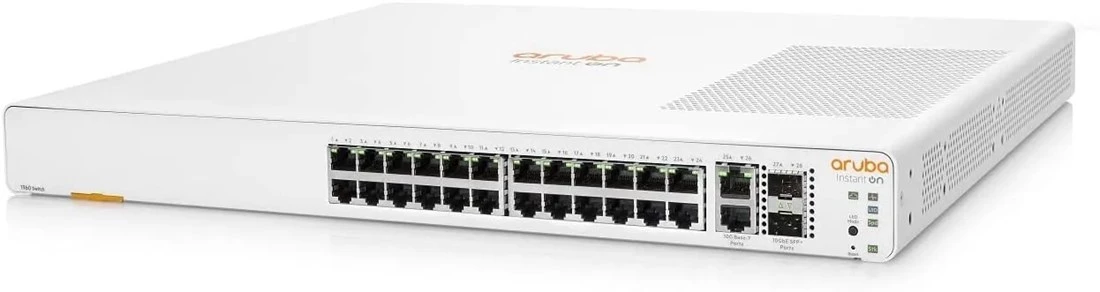

HPE JL806A Aruba Instant On 1960 24g 2xgt 2sfp+ Switch 24 Ports Managed Rack-mountable.

Key Features :

Device Type : Switch - 24 Ports - Managed

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X 100/1000/10gbase-t

Performance : Throughput: 95 Mpps , Switching Capacity: 128 Gbps , Latency (100 Mbps): 4.4 , Latency (1 Gbps): 2.2 , Latency (10 Gbps): 1.1

Capacity : Mac Address Entries: 16000 , Ipv4 Routes (static): 32 , Ipv6 Routes (static): 32

Mac Address Table Size : 16000 Entries

Jumbo Frame Support : 9216 Bytes

Routing Protocol : Static Ip Routing

Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius

Features : Flow Control, Dhcp Support, Auto-negotiation, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Trusted Platform Module (tpm), Fanless, Link Aggregation Control Protocol (lacp), Class Of Service (cos), Energy-efficient Ethernet (eee), Bpdu Filter, Auto Voice Vlan, Media Endpoint Discovery (lldp-med)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1s, Ieee 802.1ab (lldp)

Expansion / Connectivity :
Interfaces

24 X 10/100/1000 Base-t Rj-45

2 X 10 Gigabit Ethernet

10 Gigabit Ethernet Sfp+ Sfp+

2 X 10gbase-t Rj-45

Power :

Power Device : Internal Power Supply

Voltage Required : Ac 100-240 V (50/60 Hz)

Condition : New Retail Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime.
Our Warranty : 30 Days.
