Detail overview

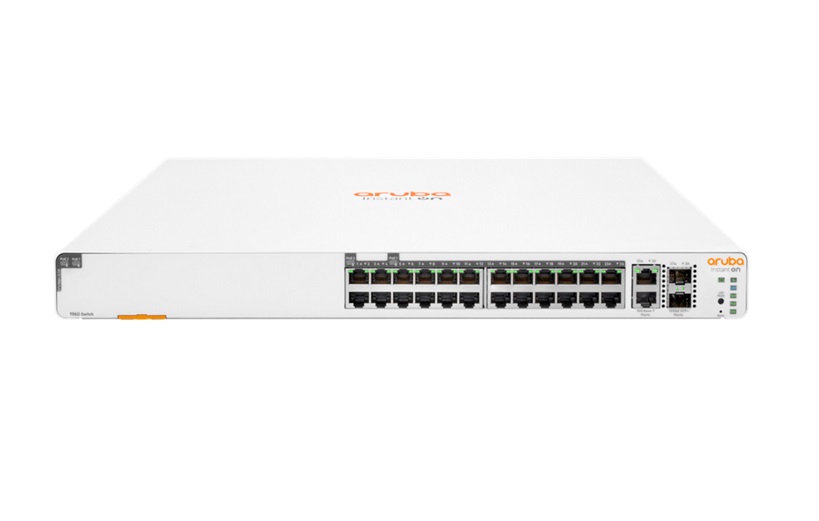

HPE JL807-61101 Aruba Instant On 1960 24g 20p Class4 4p Class6 Poe 2xgt 2sfp+ 370w Switch - Switch - 24 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 24 Ports - L3 Lite - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X 100/1000/10gbase-t

Power Over Ethernet (poe) : Poe

Poe Budget : 370 W

Performance : Throughput: 95 Mpps ¦ Switching Capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 Μs ¦ Latency (1 Gbps): 2.2 Μs ¦ Latency (10 Gbps): 1.1 Μs

Capacity : Mac Address Entries: 16000 ¦ Ipv4 Routes (static): 32 ¦ Ipv6 Routes (static): 32

Mac Address Table Size : 16000 Entries

Jumbo Frame Support : 9216 Bytes

Routing Protocol : Static Ip Routing

Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius

Authentication Method : Radius

Features : Flow Control, Dhcp Support, Auto-negotiation, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Trusted Platform Module (tpm), Link Aggregation Control Protocol (lacp), Class Of Service (cos), Energy-efficient Ethernet (eee), Bpdu Filter, Auto Voice Vlan, Media Endpoint Discovery (lldp-med)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1s, Ieee 802.1ab (lldp)

Processor : 1 X Arm: 800 Mhz

Status Indicators : Port Status, Power

Expansion / Connectivity :
Interfaces :

24 X 10/100/1000 Base-t Rj-45 370 W

2 X 10 Gigabit Ethernet / 10 Gigabit Ethernet Sfp+ Sfp+

2 X 10gbase-t Rj-45

Power :

Power Device : Internal Power Supply

Voltage Required : Ac 100-240 V (50/60 Hz)

Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
