Detail overview

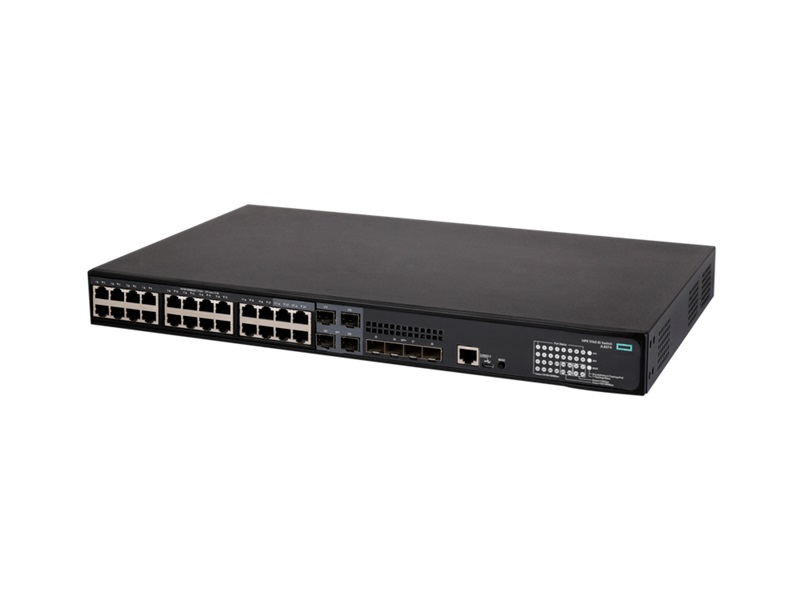

Hpe Jl828-61001 Flexnetwork 5140 24g 4sfp+ Ei - Switch - 28 Ports - Smart - Rack-mountable :

Key Features :

  • Device Type : Switch - 28 Ports - L3 - Smart
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
  • Performance : Latency (1000 Mbps): 5 Μs ¦ Latency (10 Gbps): 3 Μs ¦ Throughput: 96 Mpps ¦ Routing/switching Capacity: 128 Gbps
  • Capacity : Ipv4 Routing Table Entries: 512 ¦ Ipv6 Routing Table Entries: 256 ¦ Vlan Ids: 4094
  • Mac Address Table Size : 16384 Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Ospf, Rip-1, Rip-2, Igmp, Ospfv2, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Cidr
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Cli, Ntp, Icmp, Radius
  • Encryption Algorithm : Ssl
  • Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs
  • Features : Flow Control, Bootp Support, Arp Support, Load Balancing, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, High Availability, Half Duplex Mode, Full Duplex Mode, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Dhcp Server, Mld Snooping, Device Link Detection Protocol (dldp) Support, Stp Root Guard, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Security, Energy Efficient Ethernet, Dynamic Arp Protection, Dhcp Protection, Multiple Vlan Registration Protocol (mvrp), Strict Priority Queuing (spq), Port Isolation, Generic Attribute Registration Protocol (garp), Openflow Support, Ip Source Guard, Icmp Router Discovery Protocol (irdp), Link Aggregation, Vlan Double Tagging (q-in-q), Lldp-med, Smart Link, Guest Vlan, Ethernet Oam, Proxy Arp, Weighted Round Robin (wrr), Intelligent Resilient Fabric Technology (irf), Bpdu Protection, Udp Support, Multiple Registration Protocol (mrp)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3az, Ieee 802.1ax, Ieee 802.1r
  • Ram : 512 Mb Sdram
  • Flash Memory : 256 Mb
  • Status Indicators : Port Status, System

    Expansion / Connectivity :
    Interfaces :
  • 24 X 1000base-t Rj-45
  • 4 X Gigabit / 10gbit Lan Sfp+
  • 1 X Console Rj-45 Management
  • 1 X Micro-usb 5 Pin Usb Header Management

    Power :
  • Power Device : Internal Power Supply
  • Power Provided : 24 Watt
  • Voltage Required : Ac 100-240 V (50/60 Hz)

    Condition : New Retail Factory Sealed
    Availability : In Stock
    Manufacturer Warranty : Limited Lifetime
    Our Warranty : 30 Days
