** Image may not exactly match product **

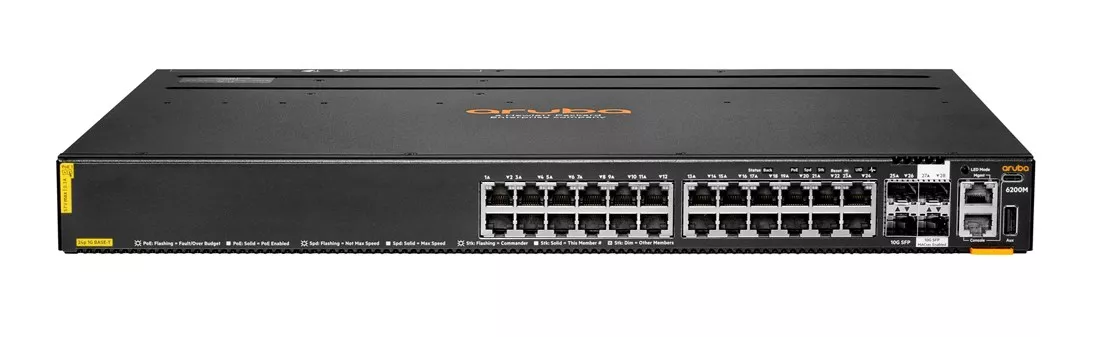

HPE R8Q68A#ABA Aruba 6200M 24G Class4 PoE 4SFP+ switch
R8Q68A#ABA
R8Q68A#ABA
R8Q68A#ABA
R8Q68A#ABA
R8Q68A#ABA

HPE R8Q68A#ABA Aruba 6200M 24G Class4 PoE 4SFP+ switch

Part Number: R8Q68A#ABA
BRAND: HPE | More NETWORKING from HPE
$1,750.00

$2,950.00
You Save: $1,200.00 40% OFF


Capacity: 24 PORT

Quantity :
5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE R8Q68A#ABA Aruba 6200m 24g Class4 Poe 4sfp+ - Switch - 24 Ports - Managed - Rack-mountable.

Key Feature:

  • Device Type: Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type: Front And Side To Back Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink / Stacking)
  • Power Over Ethernet (poe): Poe+
  • Poe Budget: 740 W
  • Performance: Switching Capacity: 128 Gbps ¶ Throughput: 95.2 Mpps ¶ Latency (1 Gbps): 2.28 S ¶ Latency (10 Gbps): 1.46 Μs ¶ Stacking Bandwidth: 40 Gbps Switched Virtual Interfaces (svis): 128 ¶ Ipv4 Host Table Capacity: 8000 ¶ Ipv6 Host Table Capacity: 8000 ¶ Ipv4 Routes (unicast): 2000 ¶ Ipv6 Routes (unicast): 2000 ¶ Igmp
  • Capacity: Groups: 1000 ¶ Mld Groups: 1000 ¶ Ipv4 Acl Entries (ingress): 1000 ¶ Ipv6 Acl Entries (ingress): 1000 ¶ Mac Acl Entries (ingress): 1000 ¶ Ipv4 Acl Entries (egress): 512 ¶
    ipv6 Acl Entries (egress): 256 ¶ Mac Acl Entries (egress): 512 ¶ Packet Buffer Size: 8 Mb

  • Jumbo Frame Support: 9220 Bytes
  • Routing Protocol: Ospf, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ecmp, Mld, Mstp, Rstp, Stp
  • Remote Management Protocol: Snmp, Rmon, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp
  • Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Compliant Standards: Ieee 802.3af, Ieee 802.3at
  • Processor: 1 X Arm: 1.8 Ghz
  • Ram: 8 Gb Ddr4 Sdram
  • Flash Memory: 16 Gb

  • Features:
    dhcp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Per-vlan Spanning Tree Plus (pvst+), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Network Timing Protocol (ntp), Protocol Independent Multicast (pim), Rapid Reconfiguration Of Spanning Tree (rstp), Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping

    Expansion / Connectivity:
    Interfaces:
    24 X 10/100/1000 Base-t Rj-45 Poe Class 4
    4 X Gigabit / 10gbit Lan Sfp+ Uplink/stacking
    1 X Usb-c Console
    1 X Console Rj-45
    1 X Usb Type A Host

    Power:
    Power Device: Internal Power Supply
    Installed Qty: 1
    Max Supported Qty: 2
    Power Redundancy: Optional
    Power Redundancy Scheme: 1+1 (with Optional Power Supply)
    Voltage Required: Ac 100-120/200-240 V (50/60 Hz)

    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
