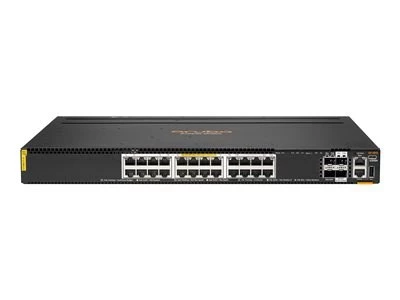

HPE R8S89-61001 Aruba 6300M 24-port SFP+ and 4-port SFP56 Class6 PoE Switch
R8S89-61001
R8S89-61001
R8S89-61001
R8S89-61001
R8S89-61001

HPE R8S89-61001 Aruba 6300M 24-port SFP+ and 4-port SFP56 Class6 PoE Switch

Part Number: R8S89-61001
BRAND: HPE | More NETWORKING from HPE
$5,550.00

$7,500.00
You Save: $1,950.00 26% OFF


Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE R8S89-61001 Aruba 6300m 24-port Sfp+ And 4-port Sfp56 Switch - Switch - L3 - Managed - 24 X 100/1000/2.5g/5g/10gbase-t (4ppoe) + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking) + 2 X 10 Gigabit / 25 Gigabit Sfp56 - Rack-mountable - 4ppoe. :

Key Features :

  • Device Type: Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 100/1000/2.5g/5g/10gbase-t (4ppoe) + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking) + 2 X 10 Gigabit / 25 Gigabit Sfp56
  • Power Over Ethernet (poe): 4ppoe
  • Performance:
    Switching Capacity: 880 Gbps Throughput: 654 Mpps Latency (1 Gbps): 4.24 Latency (10 Gbps): 1.5 Latency (25 Gbps): 2.91 Latency (50 Gbps): 3.49 Stacking Bandwidth: 200 Gbps
  • Capacity:
    Switched Virtual Interfaces (svis): 1024 Ipv4 Host Table Capacity: 49152 Ipv6 Host Table Capacity: 49152 Ipv4 Routes (unicast): 61000 Ipv6 Routes (unicast): 61000 Ipv4 Routes (multicast): 8192 Ipv6 Routes (multicast): 8192 Igmp Groups: 8192 Mld Groups: 8192 Ipv4 Acl Entries (ingress): 20480 Ipv6 Acl Entries (ingress): 5120 Mac Acl Entries (ingress): 20480 Ipv4 Acl Entries (egress): 8192 Ipv6 Acl Entries (egress): 2048 Mac Acl Entries (egress): 8192
  • Mac Address Table Size: 32768 Entries
  • Jumbo Frame Support: 9198 Bytes
  • Routing Protocol:
    Ospf, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Msdp, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp
  • Remote Management Protocol: Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp
  • Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features:
    Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, High Availability, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bootstrap Router (bsr) Mechanism, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
  • Compliant Standards:
    Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
  • Processor: 1 X Arm: 1.8 Ghz
  • Ram: 8 Gb Ddr4 Sdram
  • Flash Memory: 32 Gb

    Expansion / Connectivity :
    Interfaces:
  • 24 X 10/100/1000 Base-t Rj-45
  • 2 X 10gbit/25gbit/50gbit Sfp56
  • 2 X 10gbit/25gbit Sfp56
  • 1 X Usb-c Console
  • 1 X Console Rj-45
  • 1 X Usb Type A Host

    Power :
  • Power Device: Internal Power Supply - Hot-plug
  • Installed Qty: 1
  • Max Supported Qty: 2
  • Power Redundancy: Optional
  • Power Redundancy Scheme: 1+1 (with Optional Power Supply)
  • Voltage Required: (50/60 Hz)

    Condition : New Factory Sealed
    Availability : In Stock.
    Our Warranty : 90 Days.
