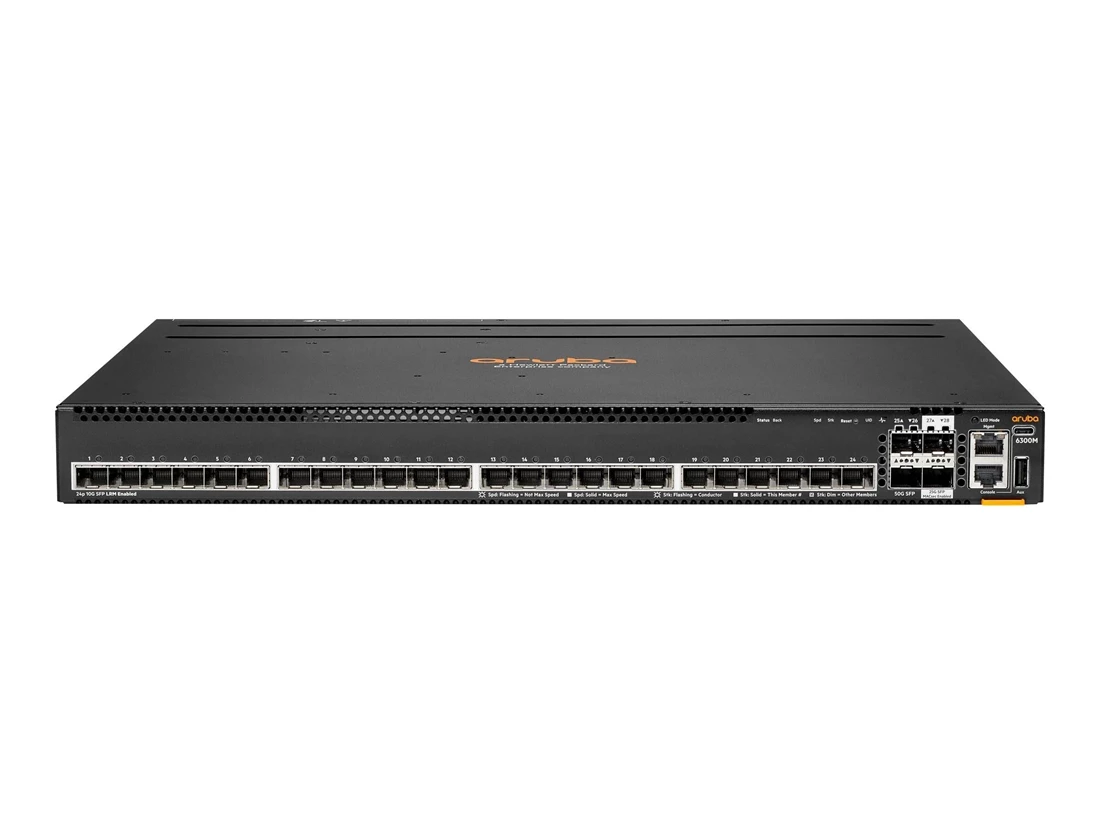

** Image may not exactly match product **

HPE R8S92A Aruba 6300M 24P SFP+ LRM 2P50G 2P25G MACsec Switch F/S

HPE R8S92A Aruba 6300M 24P SFP+ LRM 2P50G 2P25G MACsec Switch F/S

Part Number: R8S92A
BRAND: HPE | More NETWORKING from HPE
$27,700.00
Capacity: 24 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE R8S92A Aruba 6300m 24p Sfp+ Lrm Support And 2p 50g And 2p 25g Macsec Switch - Switch - 24 Ports - Managed - Rack-mountable

Key Features :

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Front And Side To Back Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 1 Gigabit / 10 Gigabit Sfp+ + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking) + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit Sfp

Performance : Switching Capacity: 880 Gbps ¦ Throughput: 660 Gbps ¦ Latency (1 Gbps): 4.24 Μs ¦ Latency (10 Gbps): 1.5 Μs ¦ Latency (25 Gbps): 2.91 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps

Capacity: Switched Virtual Interfaces (svis) : 1024 ¦ Ipv4 Host Table Capacity: 49152 ¦ Ipv6 Host Table Capacity: 49152 ¦ Ipv4 Routes (unicast): 61000 ¦ Ipv6 Routes (unicast): 61000 ¦ Ipv4 Routes (multicast): 8192 ¦ Ipv6 Routes (multicast): 8192 ¦ Igmp Groups: 8192 ¦ Mld Groups: 8192 ¦ Ipv4 Acl Entries (ingress): 20480 ¦ Ipv6 Acl Entries (ingress): 5120 ¦ Mac Acl Entries (ingress): 20480 ¦ Ipv4 Acl Entries (egress): 8192 ¦ Ipv6 Acl Entries (egress): 2048 ¦ Mac Acl Entries (egress): 8192

Mac Address Table Size : 32768 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Egp, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Igmpv3, Gre, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp

Remote Management Protocol : Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Sftp

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Ipv6 Support, High Availability, Stp Support, Rstp Support, Pvst, Mstp Support, Acl Support, Qos, Jumbo Frames Support, Mld Snooping, Udld, Rapid Pvst+, Dwrr, Lldp Support, Fan Tray, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Sp, Broadcast Storm Protection, 16mb Packet Buffer, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Ztp, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Lrm Optics Support, Aruba Vsf, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax

Processor : 1 X Arm: 1.8 Ghz

Ram : 8 Gb Ddr4 Sdram

Flash Memory : 32 Gb

expansion / Connectivity
Interfaces

24 X Gigabit / 10gbit Lan Sfp+ With Macsec

2 X 1gbit/10gbit/25gbit/50gbit Sfp

1 X Usb-c Console ¦ 1 X Management

1 X Usb Type A ¦ 1 X Console

2 X 10/25gbit Lan Sfp With Macsec

Power :

Power Device : Internal Power Supply - Hot-plug

Max Supported Qty : 2

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Voltage Required : (50/60 Hz)

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days
