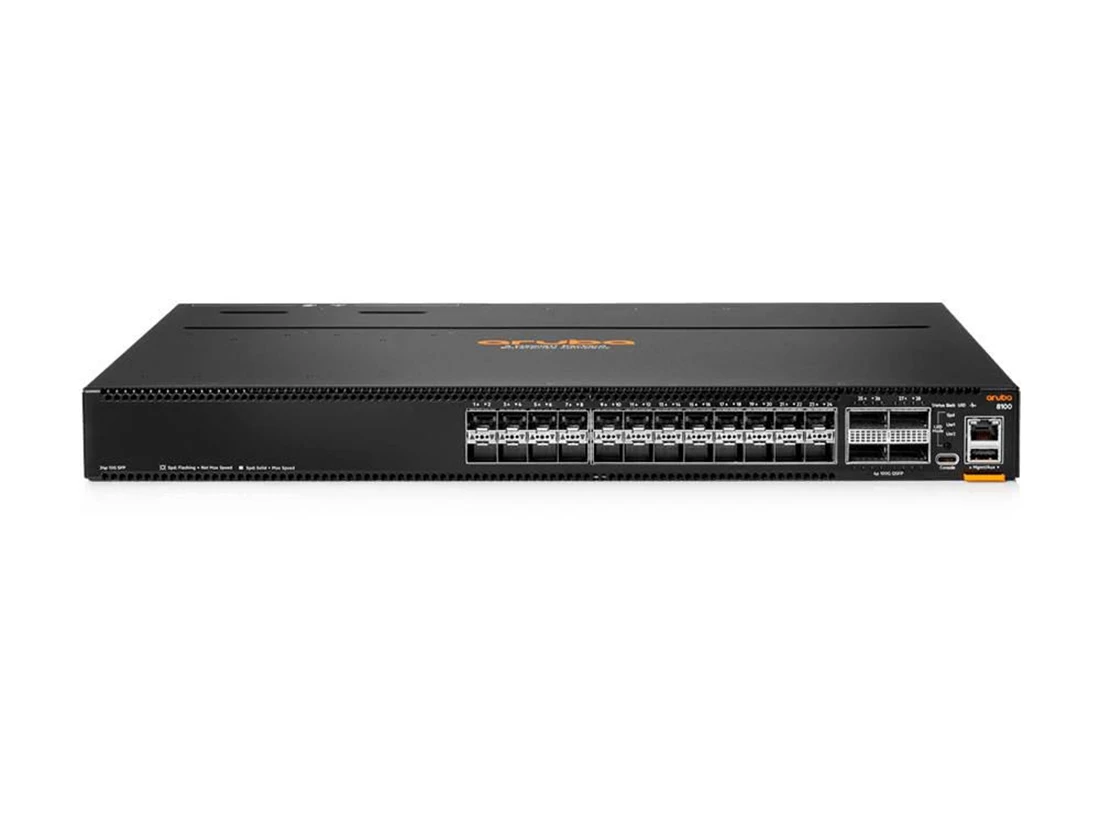

HPE R9W86A Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 - switch - 24 ports
R9W86A

HPE R9W86A Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 - switch - 24 ports

Part Number: R9W86A
BRAND: HPE | More NETWORKING from HPE
$21,950.00

$23,000.00
You Save: $1,050.00 4% OFF


Capacity: 24 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE R9W86A Aruba Networking Cx 8100 24x10g Sfp+ 4x40/100g Qsfp28 Switch - Switch - L3 - Managed - 24 X 1 Gigabit / 10 Gigabit Sfp / Sfp+ + 4 X 40 Gigabit Qsfp+ / 100 Gigabit Qsfp28 - Front To Back Airflow - Rack-mountable:

General Information:
  • Device Type: Switch - 24 Ports - L3 - Managed
  • Enclosure Type: Front To Back Airflow Rack-mountable 1u
  • Subtype: 10 Gigabit Ethernet
  • Ports: 24 X 1 Gigabit / 10 Gigabit Sfp / Sfp+ + 4 X 40 Gigabit Qsfp+ / 100 Gigabit Qsfp28
  • Performance: Switching Capacity: 1.28 Tbps
  • Capacity: Ipv4 Acl Entries (ingress): 16384 ¦ Ipv6 Acl Entries (ingress): 4096 ¦ Mac Acl Entries (ingress): 16384 ¦ Ipv4 Acl Entries (egress): 2048 ¦ Ipv6 Acl Entries (egress): 512 ¦ Mac Acl Entries (egress): 2048 ¦ Maximum Number Of Vlans: 1024 ¦ Igmp Groups: 4000 ¦ Mld Groups: 4000 ¦ Packet Buffer Size: 32 Mb ¦ Ipv4 Routes (multicast): 4096 ¦ Ipv6 Routes (multicast): 4096 ¦ Link Aggregation Groups: 54
  • Mac Address Table Size: 147456 Entries
  • Jumbo Frame Support: 9000 Bytes
  • Routing Protocol: Bgp-4, Rip-2, Igmpv2, Igmp, Igmpv3, Mldv2, Mld
  • Remote Management Protocol: Snmp 2, Snmp, Snmp 3, Mib
  • Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features: Layer 2 Switching, Port Mirroring, Sflow, Qos, Ecmp, Bfd, Dcb, Gre, Erps, Roce, Bpdu, Roce V2, Ospf, Ntp, Policy Based Routing, Rpvst+, Udld, Layer 3 Routing, Address Resolution Protocol, Aruba Vsx, Dynamic Vxlan With Bgp-evpn, Bgp-4
  • Compliant Standards: Ieee 802.3z, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3an, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.3by
  • Processor: 1 X Arm Cortex-a72: 1.8 Ghz
  • Ram: 16 Gb
  • Flash Memory: 32 Gb

    expansion / Connectivity:
    Interfaces:
  • 24 X Gigabit / 10gbit Lan Sfp+
  • 4 X 40/100gbit Lan Qsfp28/qsfp+ Uplink
  • 1 X Usb-c Console
  • 1 X Serial Rj-45
  • 1 X Usb Type A Aux

    Power:
  • Power Device: Internal Power Supply - Hot-plug
  • Installed Qty: 2
  • Max Supported Qty: 2
  • Voltage Required: Ac 100-127/200-240 V (50/60 Hz)
  • Power Consumption Stand By: 120 Watt


    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
    Manufacture Warranty: None
