| Product Overview

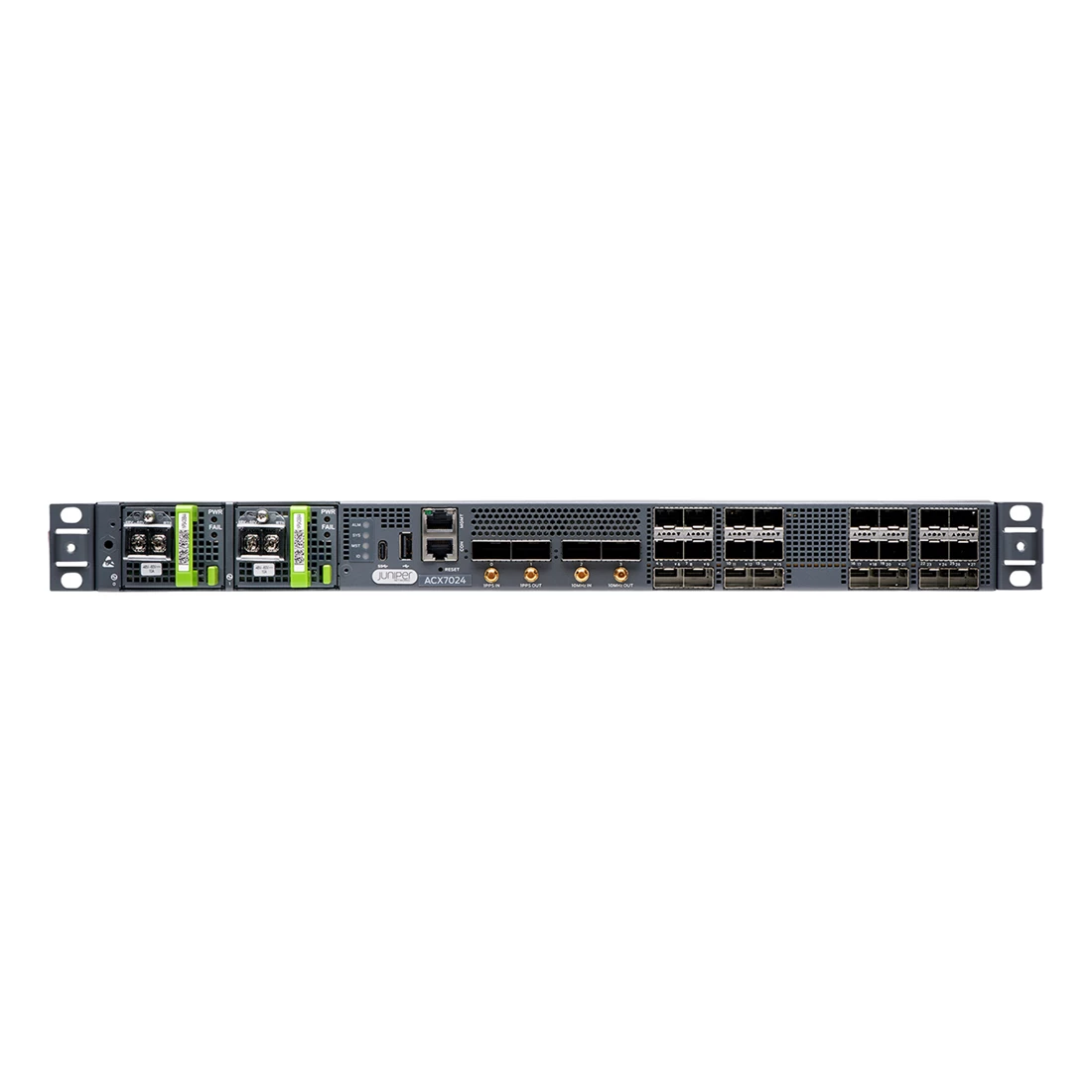

Juniper Networks ACX7024-AC-2PSU 1 U High 240 Mm Deep 24xsfp28 And 4xqsfp28 Operating Range -40°c To 65°c Ac Redundant Power Supply Unit
Overview The Juniper Networks Acx7000 Line Is Designed To Help Operators Achieve Their Capital, Operational, And User Experience Goals. Part Of The Juniper Networks Acx7000 Family Of Routers, The Acx7024 Delivers Exceptional Tco, Investment Protection, And Supports Juniper® Cloud Metro For 5g, Internet Of Things (iot), And Cloud Applications. This Makes It Ideal For Service Provider, Enterprise, And Residential Use Cases Requiring A Highly Flexible, Compact, Multiservice, And Environmentally Industrial-rated Platform
Acx7024 Product Offering Acx7024, From The Acx7000 Line, Is An Industrial-rated (itemp), Compact, Fixed, 1 U (24 Cm Deep), High-performance Multiservice Router. Next-generation Silicon Delivers 360 Gbps Of Throughput, A Comprehensive Feature Set, And The Scale Needed To Support The Performance And Bandwidth Requirements Of Today And Tomorrow. Acx7024 Fixed Ports Include 24 Multi-rate (sfp28) Ports, Each Configurable As 1gbe, 10gbe, And 25gbe, Enabling Operators To Perform Todays Most Common Upgrades On A Port-byport Basis. An Additional 4 Fixed (qsfp-28) 100gbe Uplinks Are Available To Support Scale.
The Acx7024 Incorporates 6 Integrated Fans (5+1 Redundancy) For Front-to-back And Side-to-side (with Baffle) Airflow. It Comes With 2x Field Replaceable Ac Or Dc Power Supplies (1+1 Redundancy). Costeffective And Efficient Thermal Design Enables Unrestricted Highpower 100gbe Zr Transceiver Use Across All Supporting Ports. It Incorporates Precision Timing Capabilities, Including Advanced Class C Timing For Low-latency 5g Services And Gps/gnss (global Navigation Satellite System) Transceiver For Best-in-class Network Experience. It Supports Next-generation Protocols, Including Segment Routing, Srv6, Mpls, And Ethernet Vpn (evpn)-virtual Extensible Lan (vxlan), And Any Overlay, Underlay, Or Service. It Delivers Service-assured Network Slicing, Network Intelligence, And Juniper Paragon Automation For Network Efficiency And Operational Simplicity.
Offers High Performance And Reliable Connectivity To The Internet And Other Offices
Rack Mounting Enables You To Organize Wires & Secure Cables For Professional Installation
100 Gigabit Ethernet Provides High Bandwidth Performance, Ease Of Use And Reliability For Your Network Connectivity
With 100gbase-x Technology, Enjoy Up To 100gbps Data Transfer Rate Over Supported Network Cable
Technical Specifications
Physical Characteristics
Weight (approximate): 12.50 Lb
Form Factor: rack-mountable
Height: 1.7
Width: 19
Depth: 9.6
Compatible Rack Unit: 1u
I/o Expansions/
Total Number Of Expansion Slots: 28
Power Description
Power Source: power Supply
Network & Communication
Network Technology:
- 100gbase-x
- 25gbase-x
Ethernet Technology 100 Gigabit Ethernet
Networking Standards
Ieee 802.1q
Ieee 802.3ad
Ieee 802.1ad
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
