Detail overview

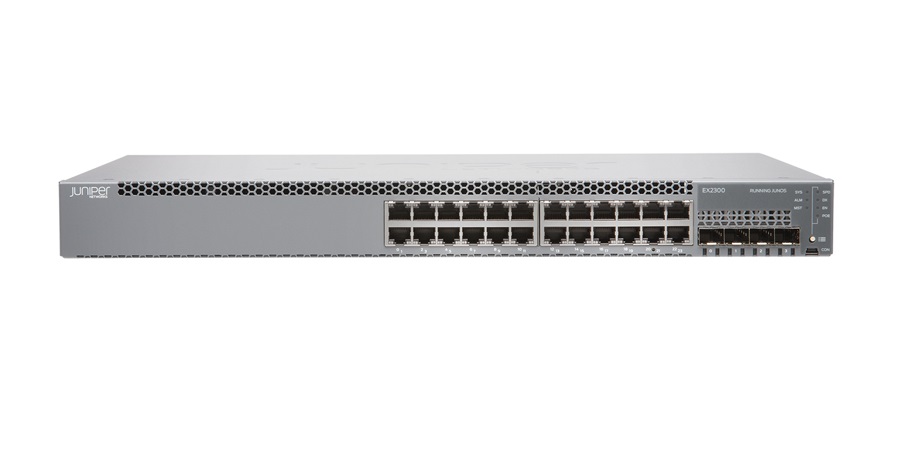

Juniper Ex Series EX2300-24T - Switch - 24 Ports - Managed - Rack-mountable.

General Information:

device Type: Switch - 24 Ports - L3 - Managed
enclosure Type: Rack-mountable 1u
subtype: Gigabit Ethernet
ports: 24 X 10/100/1000 + 4 X Gigabit Sfp / 10 Gigabit Sfp+
performance : Switching Capacity: 128 Gbps ¦ Throughput: 95 Mpps
capacity: Acl Entries: 1500 ¦ Multiple Spanning Tree Protocol Instances: 64 ¦ Vlan Spanning Tree Protocol Instances: 253 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv4 Hosts: 4096 ¦ Ipv4 Routes (multicast): 2048 ¦ Maximum Of Neighboring Networks: 750 ¦ Ipv6 Routes (unicast): 128 ¦ Ipv6 Hosts: 2048 ¦ Ipv6 Routes (multicast): 1024 ¦ Qos Hardware Queues Per Port: 8 ¦ Virtual Interfaces (vlans): 4093 ¦ Active Vlans: 2048 ¦ Lag Groups: 128 ¦ Maximum Member Ports Per Lag: 8
mac Address Table Size : 16000 Entries
jumbo Frame Support : 9216 Bytes
routing Protocol : Rip-1, Rip-2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Cidr
remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Cli
encryption Algorithm : Md5, Tls, Peap, Ttls
authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1br
processor: 1 X Arm: 1.25 Ghz
ram: 2 Gb
flash Memory: 2 Gb

expansion / Connectivity :

interfaces : 24 X 1000base-t - Rj-45 ¦ 4 X 10gbit Lan - Sfp+ - Uplink ¦ 1 X Serial - Management ¦ 1 X 100base-tx - Rj-45 - Management

power:
power Device: Internal Power Supply
power Consumption Operational: 55 Watt

Condition : New Factory Sealed.
availability : In Stock.
our Warranty : 30 Days.
