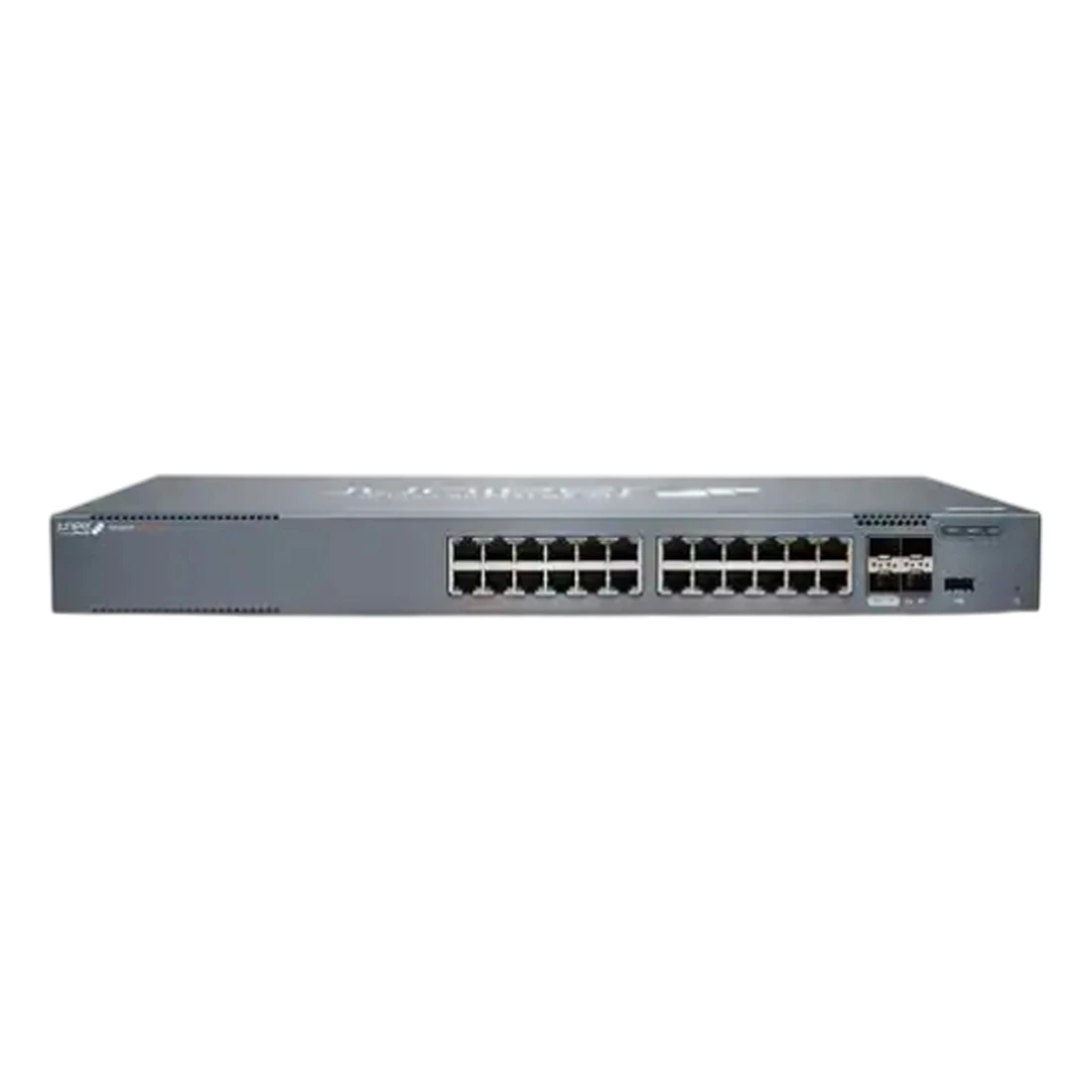

JUNIPER NETWORKS EX4000-24MP 4x 2.5 MGig + 20x 1GbE PoE++ Switch 480W
EX4000-24MP
EX4000-24MP
EX4000-24MP
EX4000-24MP
EX4000-24MP

JUNIPER NETWORKS EX4000-24MP 4x 2.5 MGig + 20x 1GbE PoE++ Switch 480W

Part Number: EX4000-24MP
BRAND: JUNIPER NETWORKS | More NETWORKING from JUNIPER NETWORKS
$2,800.00
Capacity: 24 PORT

Quantity :
5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Juniper Networks EX4000-24MP Offers 4 X 2.5 Mgig Access Ports 20 X 1gbe Poe++ (60w) Access Ports 2 X 1/10g Sfp+ Uplink Ports And 2 X 10g Sfp+ Vc Ports With A Total Poe Budget Of 480w

Overview
The Ex4000 Line Of Ethernet Access Switches Offer A Cloud-native, Ai-native Economical Solution For Access Layer Deployments In Branch And Remote Offices. Both 1 Gbps And 2.5 Gbps With 802.3at And 802.3bt Options Are Available To Provide Higher-speed Options And Poe Options, Especially When Connecting To Wi-fi 6e And Wi-fi 7 Access Points.

As Part Of The Underlying Infrastructure For Juniper Mist Wired Assurance, The Ex4000 Is Purpose-built For, And Managed By, The Cloud. The Switches Leverage Mist Ai To Simplify Operations And Provide Better Visibility Into The Experience Of Connected Devices, Delivering A Simplified, Experience-first Approach To Access Layer Switching.

key Features Of The Ex4000 Line Include:

  • Cloud-native, Ai-native Switches Featuring Juniper Mist Wired Assurance And Marvis Virtual Network Assistant
  • Fixed Form Factor Available In 12-port, 24-port, And 48-port Configurations Supporting Both Poe And Non-poe, And Offering 1g And Mgig Capabilities
  • Compact, Fanless Variants Available In 8-port And 12-port Models
  • Ieee 802.3bz Multigigabit Ethernet For Enhanced Data Speeds
  • Ieee 802.3bt Poe Plus (poe++), Delivering Up To 60 W)of Power Per Port
  • Fast And Perpetual Poe To Ensure Uninterrupted Power
  • 6-member Virtual Chassis Support For Simplified Management And Scalability

    Offering A Full Suite Of Layer 2 And Layer 3 Capabilities, The Ex4000 Supports A Wide Range Of Deployment Scenarios. As Scaling Requirements Increase, You Can Rely On Junipers Virtual Chassis Technology To Seamlessly Connect And Manage Up To Six Ex4000 Switches As A Single Device, Delivering A Scalable, Pay-as-you-grow Solution For Expanding Network Environments.

  • Ethernet Switch Ensures Productivity By Providing An Efficient, Hassle-free Connection
  • Cascade To Other Network Devices Through The Uplink Port To Expand Your Local Area Network
  • Stack Port Provides An Easy And Hassle-free Way To Extend Your Office Network
  • Create Your Own Lan And Connect Your Pc, Laptop, Printer And Other Peripherals With The Help Of 24 Ports
  • Useful For The Multi-tenant Unit And Multi-business Unit With Layer 4 Traffic Classifiers And Bandwidth Limit
  • Compact Form Factor For Your Convenience And Simplicity Of Usage
  • Management Capability Provides Control Over Setup And Configuration Of Your Network
  • Up To 10x Faster Than Standard Ethernet Server Connectivity While Providing High-performance Uplinks
  • Supports Cost-efficient Twisted Pair Cables For High-speed Data Transfer Up To 100 Meters

    Technical Specifications

    I/o Expansions
  • Expansion Slot Type Sfp+
  • Number Of Sfp+ Slots 4
  • Total Number Of Expansion Slots 4

    Management And Protocols
  • Manageable: Yes
  • Data Link Protocols:
    - Http
    - Https

    Technical Information
  • Features: Access Control List
  • High Availability Supported: Yes
  • Ai-powered: Yes

    Media & Performance
  • Network Technology:
    - 10gbase-x
    - 2.5gbase-t
  • Ethernet Technology:
    - Gigabit Ethernet
    - 2.5 Gigabit Ethernet
    - 10 Gigabit Ethernet
  • Media Type Supported:
    - Twisted Pair
    - Optical Fiber

    Power Description
  • Power Source: power Supply
  • Power Consumption: 57 W
  • Number Of Power Supplies Installed: 1
  • Poe (rj-45) Port: yes
  • Poe Budget: 480 W

    Physical Characteristics
  • Weight (approximate) 8.99 Lb
  • Form Factor:
    - Rack-mountable
    - Compact
  • Height: 1.7
  • Width: 17.4
  • Depth: 10.2

    Interfaces/ports
  • Network (rj-45): yes
  • Modular: yes
  • Uplink Port: Yes
  • Stack Port: Yes
  • Total Number Of Network Ports: 24

    Port/expansion Slot Details
  • 2 X 10 Gigabit Ethernet Uplink
  • 20 X Gigabit Ethernet Poe++
  • 2 X 10 Gigabit Ethernet Stack/uplink
  • 4 X 2.5 Gigabit Ethernet Poe++

    Networking Standards
  • Ieee 802.3u
  • Ieee 802.3x
  • Ieee 802.3z
  • Ieee 802.3by
  • Ieee 802.1d
  • Ieee 802.1ak
  • Ieee 802.3at
  • Ieee 802.1p
  • Ieee 802.1q
  • Ieee 802.1s
  • Ieee 802.1x
  • Ieee 802.3
  • Ieee 802.3ab
  • Ieee 802.3ae
  • Ieee 802.3af
  • Ieee 802.3ah

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
