Detail overview

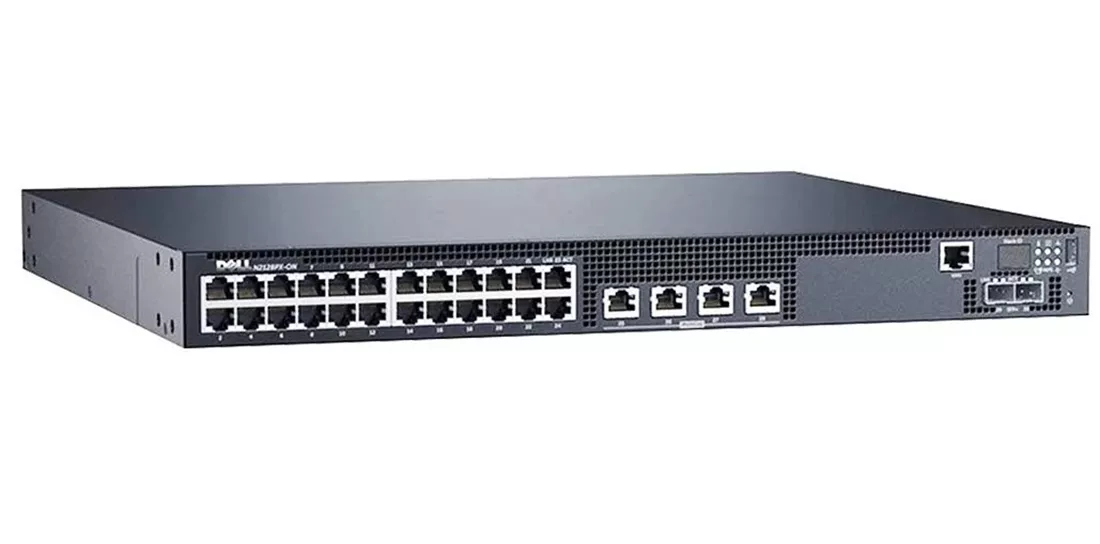

Dell K2v1v Emc Networking N2128px-on Switch 28 Ports Managed Rack-mountable. :

Key Features :

  • Device Type : Switch - 28 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype gigabit : Ethernet
  • Ports : 24 X 10/100/1000 (poe+) + 4 X 100/1000/2.5g/5g (poe) + 2 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe+
  • Performance : Switching Fabric Bandwidth: 220 Gbps Forwarding Performance: 256 Mpps
  • Capacity : Mac Addresses: 32000 Aggregated Links (dynamic): 144 Lag Groups: 128 Queues Per Port: 8 Vlans Supported: 4094 Arp Entries: 1024 Ndp Entries: 400 Max Acl Rules System-wide: 2048 Acl: 100 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256
  • Mac Address Table Size : 32000 Entries
  • Routing Protocol : Rip, Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3
  • Remote Management Protocol : Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2
  • Encryption Algorithm : Aes, Ssl, Tls 1.0
  • Authentication Method : Radius, Tacacs+, Ldap
  • Features : Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
  • Ram : 2 Gb
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
    Interfaces :
  • 24 X Gigabit Lan - Rj-45 - Poe+ - 30.8 W
  • 4 X 5gbit Lan - Rj-45 - Poe - 60 W
  • 2 X 10gbit Lan - Sfp+
  • 1 X 1000base-t - Rj-45 - Management
  • 1 X Usb - Type A

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 1
  • Power Provided : 1000 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days.
