Detail overview

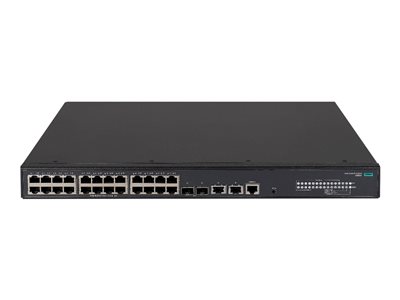

HPE JL823A Flexnetwork 5140 24g Poe+ 2sfp+ 2xgt Ei Switch 28 Ports Smart Rack-mountable.

Main Specifications

Device Type Switch - 28 Ports - L3 - Smart

Enclosure Type Rack-mountable 1u

Subtype Gigabit Ethernet

Ports 24 X 10/100/1000 (poe+) + 2 X 1 Gigabit / 10 Gigabit Sfp+ + 2 X
10 Gigabit Ethernet

Power Over Ethernet (poe) Poe+

Poe Budget 370 W

Performance Latency (1000 Mbps): 5 Μs ¦ Latency (10 Gbps): 3 Μs ¦ Throughput: 96 Mpps ¦ Routing/switching Capacity: 128 Gbps

Capacity Ipv4 Routing Table Entries: 512 ¦ Ipv6 Routing Table Entries: 256 ¦ Vlan Ids: 4094

Mac Address Table Size 16384 Entries

Jumbo Frame Support 9216 Bytes

Routing Protocol Ospf, Rip-1, Rip-2, Igmp, Ospfv2, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Cidr

Remote Management Protocol Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh-2, Cli, Scp, Snmp 6, Ntp, Icmp, Dhcp, Radius

Features Flow Control, Bootp Support, Arp Support, Load Balancing, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Diffserv Support, Weighted Round Robin (wrr) Queuing, Ipv6 Support, High Availability, Full Duplex Mode, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Radius Support, Dhcp Server, Mld Snooping, Device Link Detection Protocol (dldp) Support, Stp Root Guard, Ipv4 Support, Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Security, Smart Link Pass-through, Energy Efficient Ethernet, Dynamic Arp Protection, Dhcp Protection, Multiple Vlan Registration Protocol (mvrp), Strict Priority Queuing (spq), Port Isolation, Generic Attribute Registration Protocol (garp), Openflow Support, Ip Source Guard, Icmp Router Discovery Protocol (irdp), Link Aggregation, Vlan Double Tagging (q-in-q), Lldp-med, Smart Link, Guest Vlan, Ethernet Oam, Proxy Arp, Weighted Round Robin (wrr), Intelligent Resilient Fabric Technology (irf), Bpdu Protection, Udp Support, Multiple Registration Protocol (mrp).

Compliant Standards Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax, Ieee 802.1r

Powerac 100-240 V (50/60 Hz)

Dimensions(wxdxh) 17.3 In X 12.6 In X 1.7 In

Weight 9.92 Lbs

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
