Detail overview

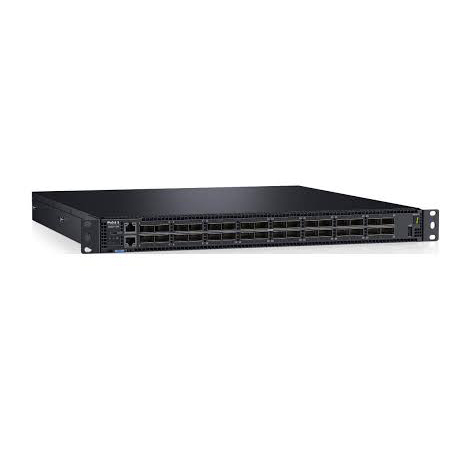

Dell 210-agms S6010-on 32p 40gbe Qsfp+ Switch.

Key Features:

  • 1ru High-density 10/40gbe Tor Switch With 32 Ports Of 40gbe
    (qsfp+) Or 96 Ports Of 10gbe¹ And Eight Ports Of 40gbe

  • Up To 2.56tbps Of Switching I/o Bandwidth (full Duplex) And
    available Non-blocking² Cut-through Switching Fabric Delivering Line-
    rate Performance Under Full Load² With Sub 600ns Latency

  • Scalable L2 And L3 Ethernet Switching With Qos And A Full
    complement Of Standards-based Ipv4 Vrf3 And Ipv6 Features,
    including Ospf And Bgp Routing Support

  • L2 Multipath Support Via Virtual Link Trunking (vlt) And Multiple Vlt
    (mvlt) Multi-chassis Link Aggregation Technology

  • Vxlan Gateway Functionality³ Support For Bridging The Non-
    virtualized And The Virtualized Overlay Networks With Line Rate
    performance

  • Open Automation Framework Adding Automated Configuration And
    provisioning Capabilities To Simplify The Management Of Network
    environments

  • Modular Dell Ftos Software Delivering Inherent Stability As Well As
    enhanced Monitoring And Serviceability Functions

  • Jumbo Frame Support For Large Data Transfers

  • 128 Link Aggregation Groups With Up To 16 Members Per Group, Using
    enhanced Hashing

  • Redundant, Hot-swappable Power Supplies And Fans

  • Converged Network Support For Dcb, With Priority Flow Control
    (802.1qbb), Ets (802.1qaz), Dcbx And Iscsi Tlv Support

  • I/o Panel To Power Supply Airflow Or Power Supply To I/o Panel
    airflow

  • Tool-less Enterprise Readyrails™ Mounting Kits Reducing Time And
    resources For Switch Rack Installation

  • Power-efficient Operation Up To 45°c Helping Reduce Cooling Costs In
    temperature-constrained Deployments

  • Fastboot Feature Enables Min-loss Software Upgrade On A Standalone
    s6010 Without Vlt/stacking

  • Roce Is Also Supported On S6010 Enabling Convergence Of Compute
    and Storage On Active Fabric

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days.
