Detail overview

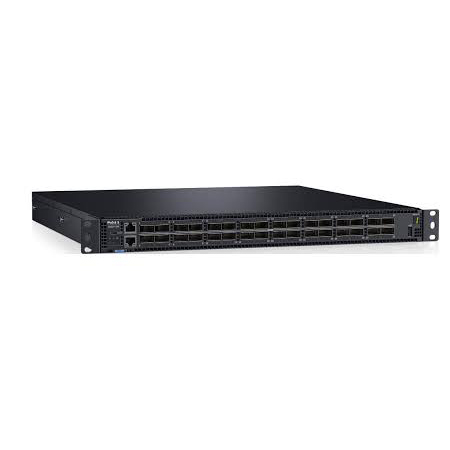

Dell 6n8x5 S6010-on 32p 40gbe Qsfp+ Switch.

Key Features:
• 1ru High-density 10/40gbe Tor Switch With 32 Ports Of 40gbe
(qsfp+) Or 96 Ports Of 10gbe¹ And Eight Ports Of 40gbe

• Up To 2.56tbps Of Switching I/o Bandwidth (full Duplex) And
available Non-blocking² Cut-through Switching Fabric Delivering Line-
rate Performance Under Full Load² With Sub 600ns Latency

• Scalable L2 And L3 Ethernet Switching With Qos And A Full
complement Of Standards-based Ipv4 Vrf3 And Ipv6 Features,
including Ospf And Bgp Routing Support

• L2 Multipath Support Via Virtual Link Trunking (vlt) And Multiple Vlt
(mvlt) Multi-chassis Link Aggregation Technology

• Vxlan Gateway Functionality³ Support For Bridging The Non-
virtualized And The Virtualized Overlay Networks With Line Rate
performance

• Open Automation Framework Adding Automated Configuration And
provisioning Capabilities To Simplify The Management Of Network
environments

• Modular Dell Ftos Software Delivering Inherent Stability As Well As
enhanced Monitoring And Serviceability Functions

• Jumbo Frame Support For Large Data Transfers

• 128 Link Aggregation Groups With Up To 16 Members Per Group, Using
enhanced Hashing

• Redundant, Hot-swappable Power Supplies And Fans

• Converged Network Support For Dcb, With Priority Flow Control
(802.1qbb), Ets (802.1qaz), Dcbx And Iscsi Tlv Support

• I/o Panel To Power Supply Airflow Or Power Supply To I/o Panel
airflow

• Tool-less Enterprise Readyrails™ Mounting Kits Reducing Time And
resources For Switch Rack Installation

• Power-efficient Operation Up To 45°c Helping Reduce Cooling Costs In
temperature-constrained Deployments

• Fastboot Feature Enables Min-loss Software Upgrade On A Standalone
s6010 Without Vlt/stacking

• Roce Is Also Supported On S6010 Enabling Convergence Of Compute
and Storage On Active Fabric

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
