Detail overview

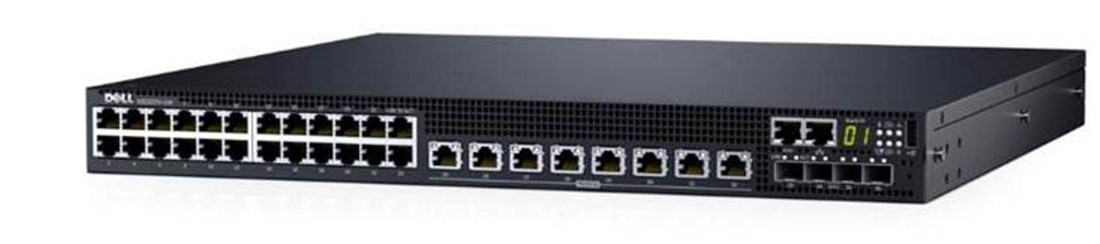

DELL N3132PX-ONF Emc Networking N3132px-on Switch 32 Ports Managed Rack-mountable.

Key Features :

  • Device Type : Switch - 32 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 (poe) + 8 X 100/1000/2.5g/5g (poe) + 4 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe
  • Performance : Switching Fabric Bandwidth: 328 Gbps ¦ Forwarding Performance: 428 Mpps
  • Capacity : Mac Addresses: 32000 , Aggregated Links (dynamic): 144 , Lag Groups: 128 , Queues Per Port: 8 , Vlans Supported: 4094 , Arp Entries: 6144 , Ndp Entries: 400 , Max Acl Rules System-wide: 4096 , Acl: 100 , Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 , Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 , Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 , Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 , Multicast Entries (ipv4): 1536 , Multicast Entries (ipv6): 512 , Ospf Routes: 8160
  • Mac Address Table Size : 32000 Entries
  • Routing Protocol : Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Mldv2, Mld
  • Remote Management Protocol : Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2
  • Encryption Algorithm : Aes, Ssl, Tls 1.0
  • Authentication Method : Radius, Tacacs+, Ldap
  • Features : Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
    compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
  • Ram : 2 Gb
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
    Interfaces :
  • 24 X Gigabit Lan - Rj-45 - Poe
  • 8 X 5gbit Lan - Rj-45 - Poe
  • 4 X 10gbit Lan - Sfp+
  • 1 X 1000base-t - Rj-45 - Management
  • 1 X Usb - Type A

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Provided : 1100 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days
