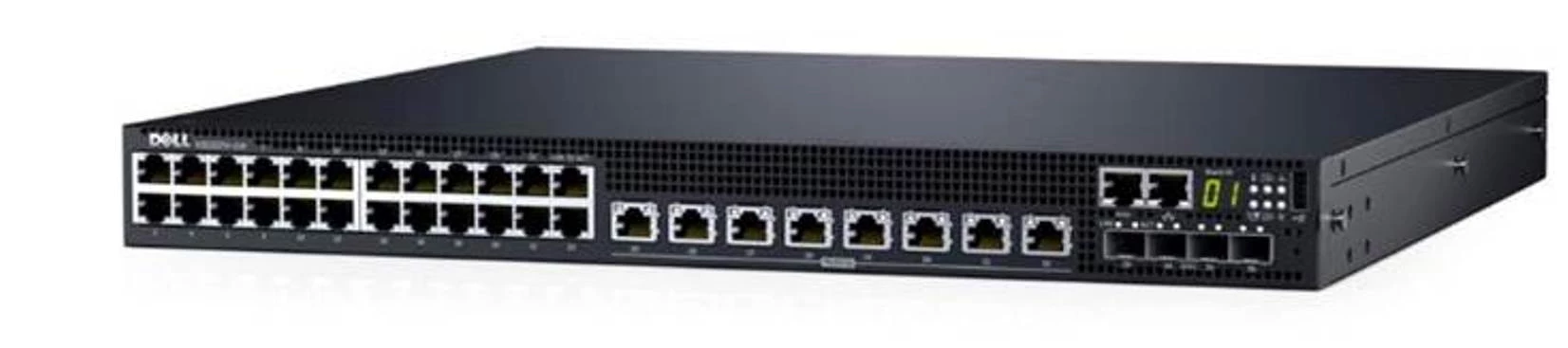

Dell Networking N3132PX-ON Managed Rack Mountable Switch
N3132PX-ON
N3132PX-ON
N3132PX-ON
N3132PX-ON
N3132PX-ON

Dell Networking N3132PX-ON Managed Rack Mountable Switch

Part Number: N3132PX-ON
BRAND: DELL | More NETWORKING from DELL
$440.00

$700.00
You Save: $260.00 37% OFF


Capacity: 32 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

DELL Emc N3132PX-ON Networking 32 Ports Managed Switch With 2 X Psu, Os6 And Standard Airflow



Key Features :
  • Device Type : Switch 32 Ports L3 Managed Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 (poe) + 8 X 100/1000/2.5g/5g (poe) + 4 X 10 Gigabit Sfp+
  • > Power Over Ethernet (poe) : Poe
  • Performance : Switching Fabric Bandwidth: 328 Gbps , Forwarding Performance: 428 Mpps
  • Capacity : Mac Addresses: 32000 , Aggregated Links (dynamic): 144 , Lag Groups: 128 , Queues Per Port: 8 , Vlans Supported: 4094 , Arp Entries: 6144 , Ndp Entries: 400 , Max Acl Rules System-wide: 4096 , Acl: 100 , Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 , Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 , Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 , Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 , Multicast Entries (ipv4): 1536 , Multicast Entries (ipv6): 512 , Ospf Routes: 8160
  • Mac Address Table Size : 32000 Entries
  • Routing Protocol : Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Mldv2, Mld
  • Remote Management Protocol : Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2
  • Encryption Algorithm : Aes, Ssl, Tls 1.0
  • Authentication Method : Radius, Tacacs+, Ldap
  • Features : Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
    compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
  • Ram : 2 Gb
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
    Interfaces :
  • 24 X Gigabit Lan - Rj-45 - Poe
  • 8 X 5gbit Lan - Rj-45 - Poe
  • 4 X 10gbit Lan - Sfp+
  • 1 X 1000base-t - Rj-45 - Management
  • 1 X Usb - Type A

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Provided : 1100 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 90 Days
