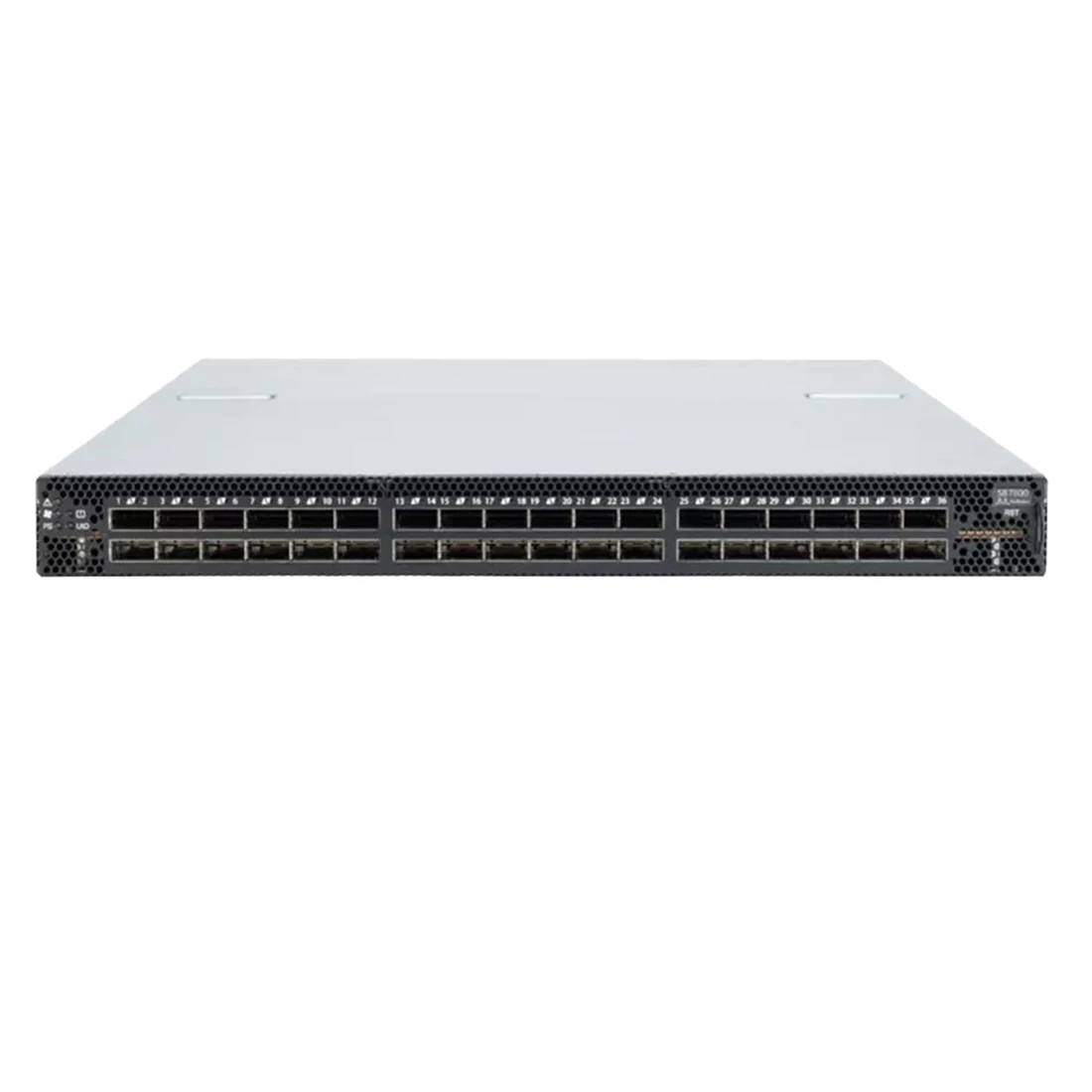

Mellanox MSB7800-ES2F Switch-IB 2 based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7.2Tb/s. 2PS, Standard depth P2C Airflow
MSB7800-ES2F
MSB7800-ES2F
MSB7800-ES2F
MSB7800-ES2F
MSB7800-ES2F

Mellanox MSB7800-ES2F Switch-IB 2 based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7.2Tb/s. 2PS, Standard depth P2C Airflow

Part Number: MSB7800-ES2F
BRAND: MELLANOX | More NETWORKING from MELLANOX
$5,250.00
Capacity: 36 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MSB7800-ES2F Switch-ib 2 Based 36-port Qsfp28 Edr 1u Managed Infiniband Switch System With A Non-blocking Switching Capacity Of 7.2tb/s. 2ps, Standard Depth P2c Airflow.

Features:

MELLANOX Sb7800

  • 19 Rack Mountable 1u Chassis
  • 36 Qsfp28 Non-blocking Ports With Aggregate Data Throughput Up To 7.2tb/s (edr)

    Switch Specifications
  • Compliant With Ibta 1.21 And 1.3
  • 9 Virtual Lanes: 8 Data + 1 Management
  • 8 Data + 1 Management
  • 256 To 4kbyte Mtu
  • Adaptive Routing
  • Vl2vl Mapping
  • 4x48k Entry Linear Forwarding Database

    Management Ports
  • 10/100/1000mb/s Ethernet Ports
  • Rs232 Port Over Db9
  • Usb Port
  • Dhcp
  • Familiar Industry Standard Cli
  • Management Over Ipv6
  • Management Ip
  • Snmp V1, V2, V3
  • Web Ui

    Fabric Management
  • On-board Subnet Manager Supporting Fabrics Of Up To 2k Nodes
  • Unified Fabric Manager (ufm) Agent

    Connectors And Cabling
  • Qsfp28 Connectors
  • Passive Copper Or Active Fiber Cables
  • Optical Modules

    Indicators
  • Per Port Status Led Link, Activity
  • System Status Leds: System, Fans, Power Supplies
  • Port Error Led
  • Unit Id Led

    Physical Characteristics
  • Dimensions: 1.7 (43.6 Mm) H X 16.85 (428 Mm) W X 27 (685.8 Mm) D
  • Weight: 11 Kg (24.2 Lb)

    Power Supply
  • Dual Redundant Slots
  • Hot Plug Operation
  • Input Range: 100-127 Vac, 200-240 Vac
  • Frequency: 50-60 Hz, Single Phase Ac, 4.5a, 2.9a

    Cooling
  • Front-to-rear Or Rear-to-front Cooling Option
  • Hot-swappable Fan Unit

    Power Consumption Typical Power With Passive Cables
    (atis): 136w

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
