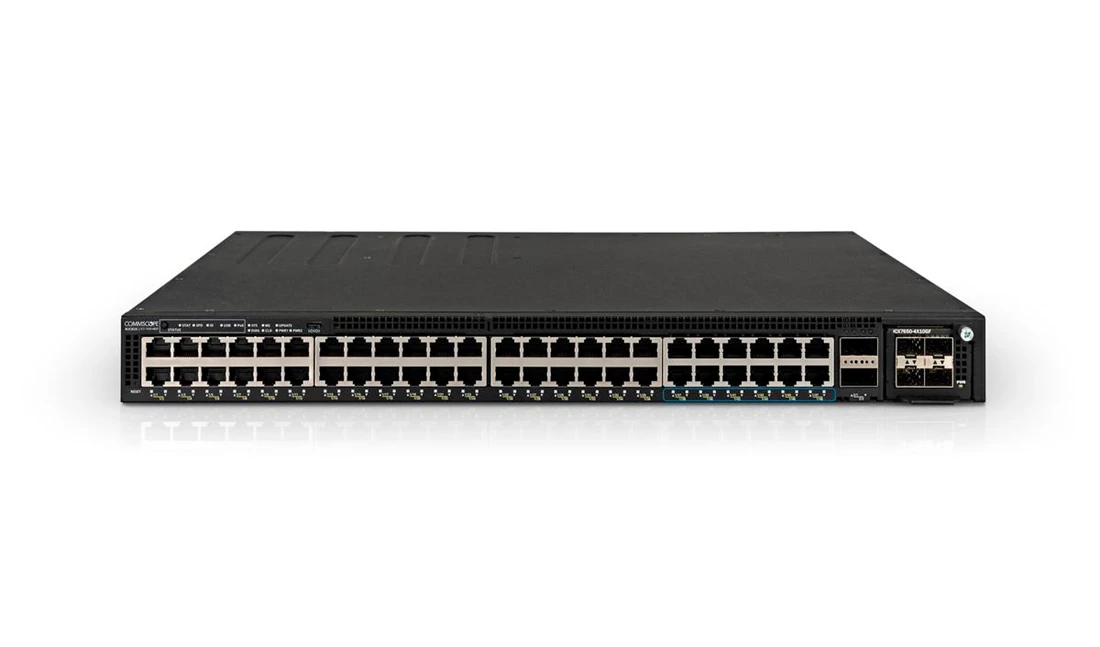

RUCKUS ICX7550-48ZP 48 Multi-Gigabit Ports with POE

RUCKUS ICX7550-48ZP 48 Multi-Gigabit Ports with POE

Name: RUCKUS ICX7550-48ZP 48 Multi-Gigabit Ports with POE
Brand: RUCKUS
SKU: 406590
Price: 1750 USD
Availability: InStock
Rating: 4.8 (32286 reviews)

Part Number: ICX7550-48ZP
BRAND: RUCKUS | More NETWORKING from RUCKUS
$1,750.00
Capacity: 36 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

RUCKUS ICX7550-48ZP 48-port With 36-port 100/1000 Mbps/2.5 Gbps 802.3bt Poe++, 12-port 100/1000 Mbps/2,5/5/10 Gbps 802.3bt Poe++, 2x 40/100gbps Qsfp+ Dual-mode Uplink/stacking Ports, Modular Slot - Rack-mountable. (no Power Supplies, No Fans And No Port Modules - Ordered Separately).

Specifications :

Network Ports : 36x 2.5 Gigabit Ethernet Poe+ Rj45, 12x 10 Gigabit Ethernet Poe+ Rj45

Uplink Ports : 2x 100 Gigabit Ethernet Qsfp28

Management Ports : 1x Out Of Band Management Rj45, 1x Usb Type C, 1x Rj45 Console, 1x Usb Type A

Stacking Ports : Uplink Ports Act As Stacking Ports

Stacking Options : Up To 12 Switches Can Be Stacked Together. Aggregate Stacking Bandwidth = 960 Gbps

Stacking Cable Options : Various Dac Cable Options.

Module Slots : 1x Expansion Module Slots - Module Not Included - Ordered Separately

Module Options : Icx7650-1x100gq (1-port 100gb Qsfp28), Icx7650-2x40gq (2-port 40gb Qsfp+), Icx7650-4x10gf (4-port 1/10gb Sfp+)

Poe Budget : 1666 W (100-180v) 2000 W (180-240v)

Switching Capacity : 1,020 Gbps

Forwarding Rate : 759 Mpps

Mac Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)

Expansion / Connectivity :
Interfaces :

36-port 100/1000 Mbps/2.5 Gbps 802.3bt Poe,

12-port 100/1000 Mbps/2.5/5/10 Gbps 802.3bt Poe

2-ports 40/100 Gbps Uplink/stack Qsfp28, Expansion Module Slot

24-poe Port 802.3bt, Up To 90w Per Port, Up To 1900w Poe Budget

Perpetual And Fast-boot Poe On All Ports

1x Out Of Band Management Rj45

1x Usb Type C

1x Rj45 Console

1x Usb Type A

Power :

Power Device : Internal Power Supply

Installed Qty : 0 (installed) / 2 (max) ( Minimum 1 Required)

Max Poe Power: 400w

Supported Psu: Rps21-e (front-back), Rps21-i (back-front)

Fan :

Installed Qty : 0 (installed) / 3 (max)

Supported Fan : Icx-fan12-e (front-back) Icx-fan12-i (back-front)

Airflow Direction : Front-to-back Airflow

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
