Detail overview

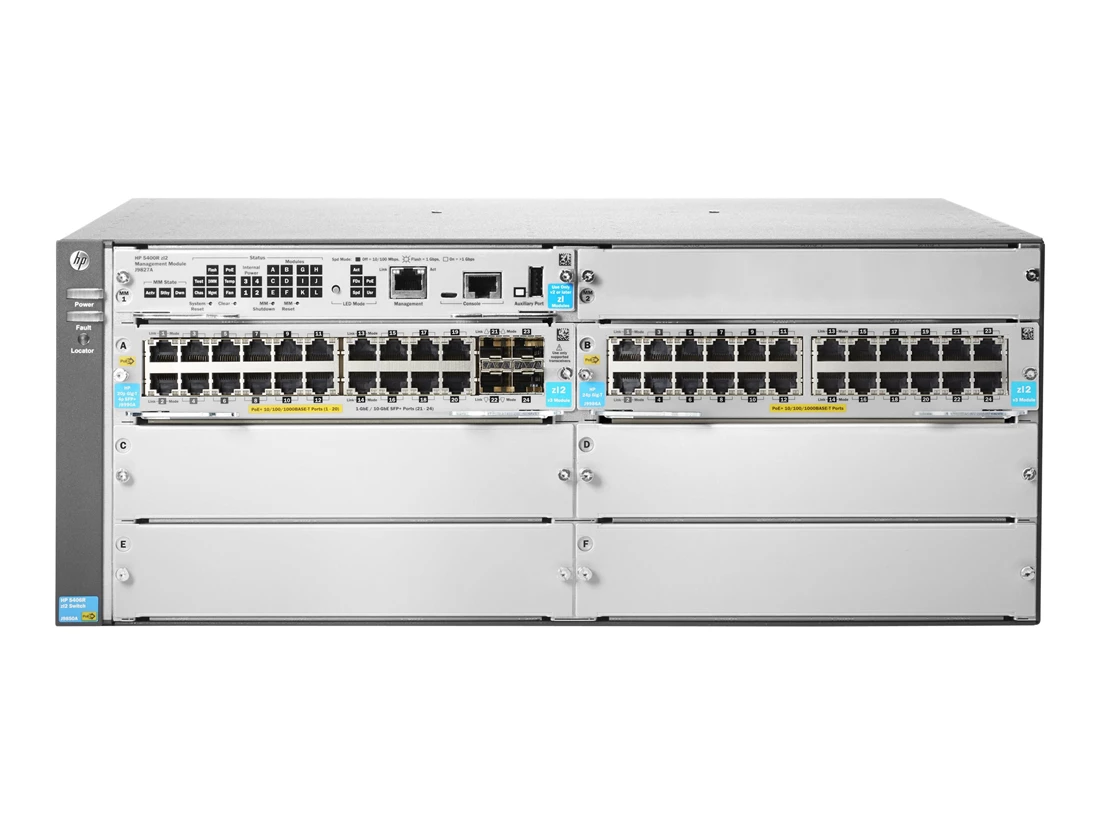

HPE JL003A 5406r 44gt Poe+ / 4sfp+ (no Psu) V3 Zl2 Switch - Switch - 44 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 44 Ports - Managed

Enclosure Type : Rack-mountable - 4u

Subtype : Gigabit Ethernet

Ports : 44 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe+

Performance : Routing/switching Capacity : 960 Gbps ¦ Throughput : Up To 571.4 Mpps ¦ Switching Fabric Bandwidth : 1015 Gbps

Capacity : Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000

Mac Address Table Size : 64k Entries

Jumbo Frame Support : Yes

Routing Protocol : Rip-1, Rip-2, Bgp, Igmp, Vrrp, Ospfv2, Pim-sm, Static Ip Routing, Pim-dm, Igmpv3, Ospfv3, Static Ipv6 Routing, Mldv2, Mld

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Smon, Cli, Xrmon

Encryption Algorithm : Ssl

Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)

Features : Flow Control, Routing, Dhcp Support, Bootp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Tunneling, Access Control List (acl) Support, Quality Of Service (qos), Mld Snooping, Non-stop Routing (nsr), Bandwidth Control, Stp Root Guard, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Dhcp Relay, Port Security, Fan Tray, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dual Firmware Images, Class Of Service (cos), Sflow V5, Garp Vlan Registration Protocol (gvrp), Type Of Service (tos), Macsec Support

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax

Processor : 1 X Freescale P2020 : 1.2 Ghz

Ram : 4 Gb - Ddr3 Sdram

Flash Memory : 1 Gb

Expansion / Connectivity :
Interfaces :

44 X 1000base-t - Rj-45

8 X Gigabit / 10gbit Lan - Sfp+

Expansion Slots :

6 (total) / 4 (free) X Expansion Slot

1 (total) / 0 (free) X Sd Memory Card

Installed Modules Qty (max) : 2 (installed) / 6 (max)

Power :

Power Device : Internal Power Supply

Installed Qty : 0 (installed) / 2 (max)

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
