Detail overview

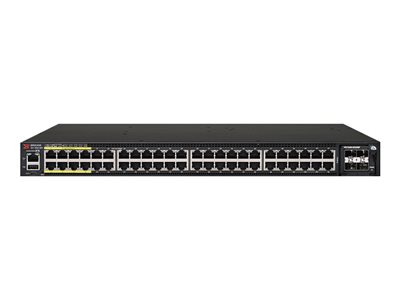

BROCADE ICX7450-48 Switch 48 Ports Managed Rack-mountable.

main Specifications

device Type Switch - 48 Ports - L3 - Managed - Stackable

enclosure Type Rack-mountable 1u

subtype Gigabit Ethernet

ports 48 X 10/100/1000

performance Switching Capacity: 336 Gbps ¦ Forwarding Performance: 250 Mpps

capacity Virtual Interfaces (vlans): 4096 ¦ Spanning Tree Protocol Instances: 254 ¦ Ipv4 Routes: 16000 ¦ Ipv6 Routes: 3000

mac Address Table Size 32000 Entries

jumbo Frame Support 9216 Bytes

routing Protocol Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Mldv2, Mld.

remote Management Protocol Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Cli

features Flow Control, Bootp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Dos Attack Prevention, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Mac Address Filtering, Ipv6 Support, High Availability, Link Fault Signaling (lfs), Metro Ring Protocol (mrp) Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Remote Fault Notification (rfn), Virtual Switch Redundancy Protocol (vsrp) Support, Vlan Stacking, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Digital Optical Monitoring (dom) Support, Dhcp Server, Mld Snooping, Dynamic Arp Inspection (dai), Per-vlan Spanning Tree Plus (pvst+), Stp Root Guard, Uni-directional Link Detection (udld), Ipv4 Support, Lacp Support, Dhcp Relay, Port Security, Per-vlan Rapid Spanning Tree (pvrst), Port Based Access Control, Energy Efficient Ethernet, Management Information Base (mib), Hot Swappable Fan, Strict Priority (sp), Tagged Vlan, Igmp Proxy, Garp Vlan Registration Protocol (gvrp), Type Of Service (tos), Diffserv Code Point (dscp) Support, Macsec Support

compliant Standards Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az

power Optional

dimensions (wxdxh) 17.3 In X 15.5 In X 1.7 In

condition : Refurbished.
availability : In Stock.
our Warranty : 30 Days.
