Detail overview

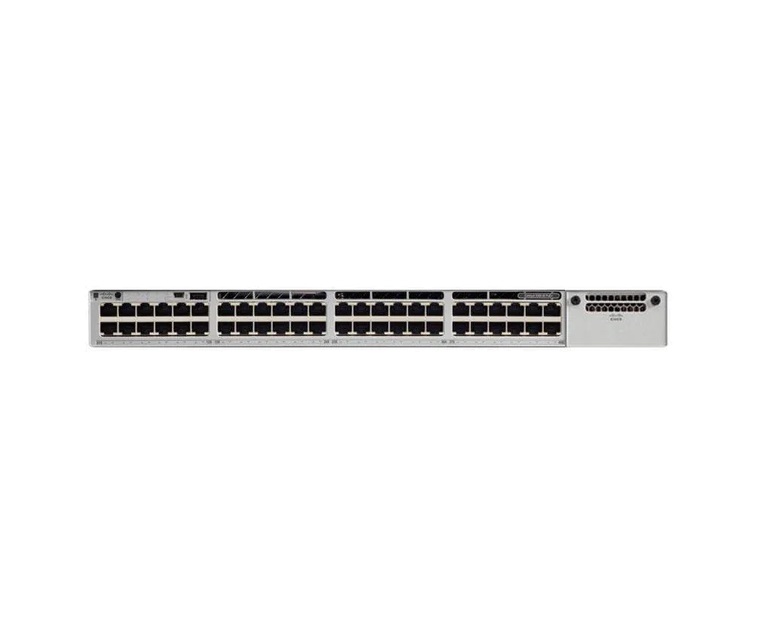

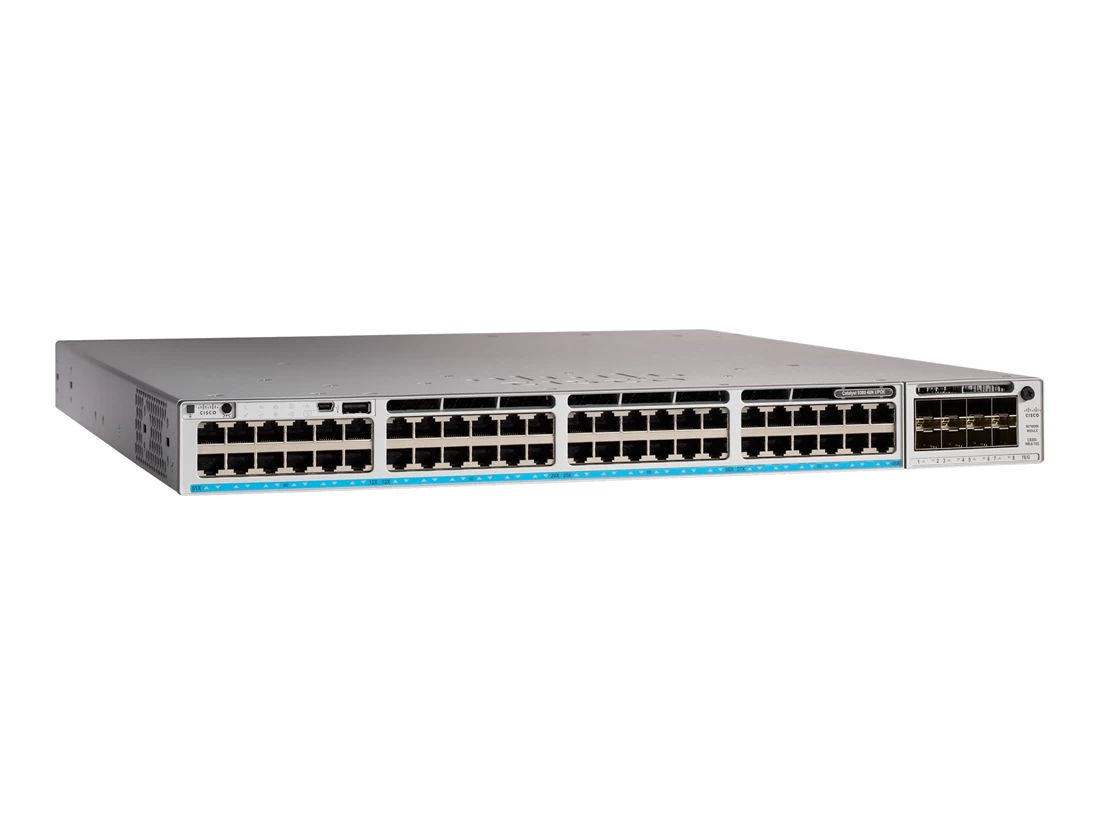

CISCO C9300-48H-E Catalyst 9300 - Switch - 48 Ports - Managed - Rack-mountable :

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 10/100/1000 (upoe+)

Power Over Ethernet (poe) : Upoe+

Poe Budget : 822 W

Performance : Switching Capacity: 256 Gbps ¦ Stacking Bandwidth: 736 Gbps ¦ Forwarding Rate: 190.48 Mpps ¦ Forwarding Rate With Stacking: 547.62 Mpps

Capacity : Ipv4 Routing Table Entries: 32000 ¦ Ipv6 Routing Table Entries: 16000 ¦ Flexible Netflow Entries: 64000 ¦ Vlan Ids: 4000 ¦ Switched Virtual Interfaces (svis): 2000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Is-is, Rip-1, Rip-2, Bgp, Eigrp, Hsrp, Igmp, Vrrp, Pim-sm, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp, Snmp 3, Snmp 2c, Cli, Netconf, Restconf

Encryption Algorithm : 128-bit Aes

Features : Dhcp Support, Trunking, Syslog Support, Full Duplex Mode, Stateful Switchover (sso), Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Quality Of Service (qos), Non-stop Routing (nsr), Remote Switch Port Analyzer (rspan), Management Information Base (mib), CISCO Stackwise-480 Technology, CISCO Stackpower Technology, Flexible Netflow (fnf), Multicast Source Discovery Protocol (msdp), 802.1x Authentication, 16mb Packet Buffer, Ftp Client, Macsec Support, 3 Fans, Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Application Visibility And Control (avc), Source-specific Multicast (ssm), Integrated Wireshark, Vlan Double Tagging (q-in-q), Ethernet Over Mpls (eompls), Hierarchical Virtual Private Lan Service (h-vpls), Private Vlan, Layer 3 Vpn (l3vpn) Support, Encapsulated Remote Span (erspan), Security Group Tag (sgt) Caching, Security Group Access Control List (sgacl), It Service Management (itsm) Integration, Third-party Ip Address Management (ipam) Integration

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at

Ram : 8 Gb

Flash Memory : 16 Gb

Status Indicators : Status

Expansion / Connectivity :

Interfaces : 48 X 1000base-t Rj-45 Upoe+ ¦ 1 X Usb 2.0

Expansion Slots : 1 (total) / 1 (free) X Expansion Slot

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 1

Max Supported Qty : 2

Power Redundancy : Optional

Power Provided : 1100 Watt

Voltage Required : Ac 120/230 V (50 - 60 Hz)

Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 30 Days
