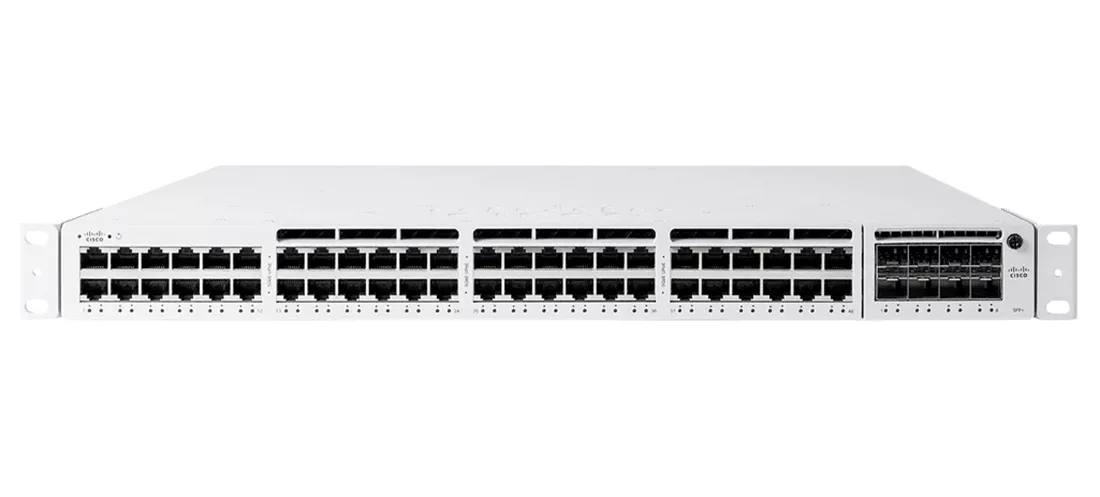

Cisco MS390-48UX2-HW Meraki MS390 48m5G L3 UPOE Switch

Part Number: MS390-48UX2-HW
BRAND: CISCO | More NETWORKING from CISCO
$4,425.00
Capacity: 48 PORT

Quantity :
| Product Overview

CISCO MS390-48UX2-HW Meraki Cloud Managed - Switch - L3 - Managed - 48 X 100/1000/2.5g/5gbase-t (upoe) - Rack-mountable - Upoe (645w) Switch With Expansion Module Ma-mod-4x10g ( Unclaimed):

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 5 Gigabit Ethernet
  • Ports : 48 X 100/1000/2.5g/5gbase-t (upoe)
  • Power Over Ethernet (poe) : Upoe
  • Poe Budget : 645 W
  • Performance : Switching Capacity: 640 Gbps , Stacking Bandwidth: 480 Gbps , Forwarding Rate: 476.19 Mpps
  • Mac Address Table Size : 32k Entries
  • Jumbo Frame Support : 9600 Bytes
  • Max Units In A Stack : 8
  • Routing Protocol : Ospf, Vrrp, Ospfv2, Static Ip Routing, Rstp, Stp
  • Remote Management Protocol : Dhcp, Ipv4, Ipv6, Rstp, Radius
  • Authentication Method : Radius
  • Features : Auto-negotiation, Igmp Snooping, Syslog Support, Port Mirroring, E-mail Alert, Broadcast Storm Control, Per-vlan Spanning Tree (pvst), Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Uni-directional Link Detection (udld), Dhcp Relay, Port Security, Hot Swappable Fan, CISCO Stackpower Technology, Crossover Detection, Cloud Managed, 3 Fans, Role-based Access Control (rbac), Root Guard, Loop Guard, Mac Access Bypass (mab), Bpdu Guard, CISCO Discovery Protocol (cdp)
  • Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp)

    Expansion / Connectivity :
    Interfaces :
  • 48 X 100/1000/2.5g/5g Rj-45 Upoe
  • 2 X Network Stack Device Qsfp Uplink
  • 1 X Management

    Expansion Slots :
  • 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1
  • Max Supported Qty : 2
  • Power Redundancy : Optional
  • Power Redundancy Scheme : 1+1 (with Optional Power Supply)
  • Power Provided : 1100 Watt
  • Voltage Required : Ac 120/230 V (50 - 60 Hz)
  • Power Consumption Operational : 843.8 Watt
  • Power Consumption Stand By : 157.9 Watt

    Condition : New Open Box.
    Availability : In Stock
    Our Warranty : 30 Days
