Detail overview

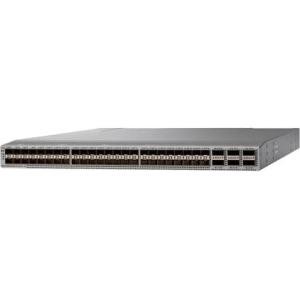

CISCO N9K-C93180YC-EX Nexus 93180yc-ex - Switch - 48 Ports - L3 Rack-mountable.

Key Features :

Device Type : Switch - 48 Ports - L3

Enclosure Type : Rack-mountable 1u

Subtype : 25 Gigabit Ethernet

Ports : 48 X 1/10/25 Gigabit Sfp+ + 6 X 40/100 Gigabit Qsfp+

Performance : Bandwidth: 3.6 Tbps ¦ Active Span Sessions: 4

Capacity : Multiple Spanning Tree Protocol Instances: 64 ¦ Hsrp Groups: 490 ¦ Per Vlan Rapid Spanning Tree Instances: 4000 ¦ Maximum Number Of Links In A Port Channel: 32 ¦ Maximum Number Of Port Channels: 512 ¦ Ecmp Paths: 64 ¦ Virtual Routing And Forwarding (vrf) Instances: 1000 ¦ Vlans Supported: 4096 ¦ Acl Entries (egress): 2000 ¦ Acl Entries (ingress): 4000 ¦ Igmp Snooping Groups: 8000 ¦ Multicast Routes: 8000

Mac Address Table Size : 512k Entries

Routing Protocol : Ospf, Rip, Rip-2, Bgp, Eigrp, Hsrp, Pim-sm, Msdp, Ecmp, Mpls

Features : Layer 3 Switching, High Availability, Hot Swappable 4 Fans, Virtual Portchannel (vpc) Technology, In-service Software Upgrade (issu), Npv Gateway Mode, Virtual Extensible Lan (vxlan), Source-specific Multicast (ssm), Ethernet Virtual Private Network (evpn), 40mb System Buffer

Ram : 16 Gb

Built-in Devices : 64 Gb Ssd

Expansion / Connectivity :
interfaces :

48 X 1/10/25gbit Lan Sfp+ Downlink

6 X 100gbit/40gbit Lan Qsfp28 Uplink

1 X Management Rj-45

1 X Management Sfp+

1 X Usb

1 X Serial (rs-232)

Power :

Power Device : Internal Power Supply (not Installed) - Hot-plug

Max Supported Qty : 2

Power Redundancy : Optional

Power Redundancy Scheme : n+1


Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
