Detail overview

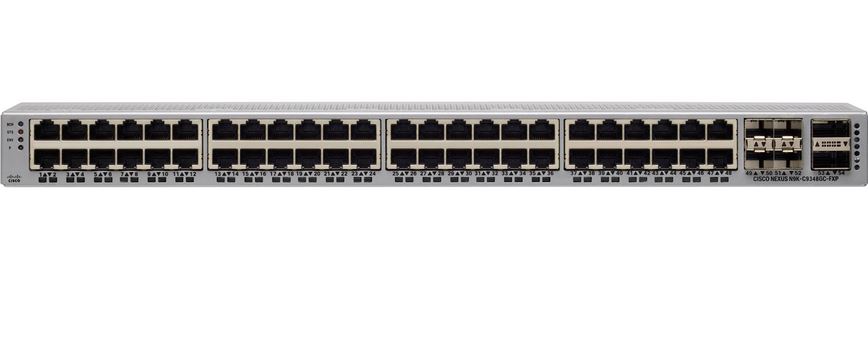

CISCO N9K-C9348GC-FXP Nexus 9300 - 48 Ports Switch - With 48x 1000base-t + 4x 10 Gigabit / 25 Gigabit Sfp28 + 2x 40 Gigabit / 100 Gigabit Qsfp28 - Rack-mountable.

Specifications

Description : CISCO Nexus 9348gc-fxp - Switch - 48 Ports - Rack-mountable

Device Type : Switch - 48 Ports

Enclosure Type: Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 1000base-t + 4 X 10 Gigabit / 25 Gigabit Sfp28 + 2 X 40 Gigabit / 100 Gigabit Qsfp28

Interfaces : 48 X 1000base-t ¦ 4 X 10/25gbase-t Sfp28 ¦ 2 X 100gbit/40gbit Lan Qsfp28 ¦ 1 X Management Rj-45/sfp+ ¦ 1 X Usb ¦ 1 X Serial (rs-232)

Performance : Bandwidth: 2.6 Tbps ¦ Active Span Sessions: 4

Capacity : Multiple Spanning Tree Protocol Instances: 64 ¦ Hsrp Groups: 490 ¦ Per Vlan Rapid Spanning Tree Instances: 4000 ¦ Maximum Number Of Links In A Port Channel: 32 ¦ Maximum Number Of Port Channels: 512 ¦ Ecmp Paths: 64 ¦ Virtual Routing And Forwarding (vrf) Instances: 16000 ¦ Vlans Supported: 4096 ¦ Acl Entries (egress): 2000 ¦ Igmp Snooping Groups: 32000 ¦ Multicast Routes: 32000

Routing Protocol : Ospf, Rip-2, Bgp, Eigrp, Hsrp, Pim-sm, Msdp, Ecmp, Mpls, Rsvp

Power Device : Internal Power Supply - Hot-plug

Max Supported Qty : 2

Power Redundancy : N+1

Power Provided : 350 Watt

Voltage Required : ac 120/230 V (50 - 60 Hz)

Dimensions (wxdxh) : 17.3 In X 19.6 In X 1.7 In

Weight : 14.2 Lbs


Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
