Detail overview

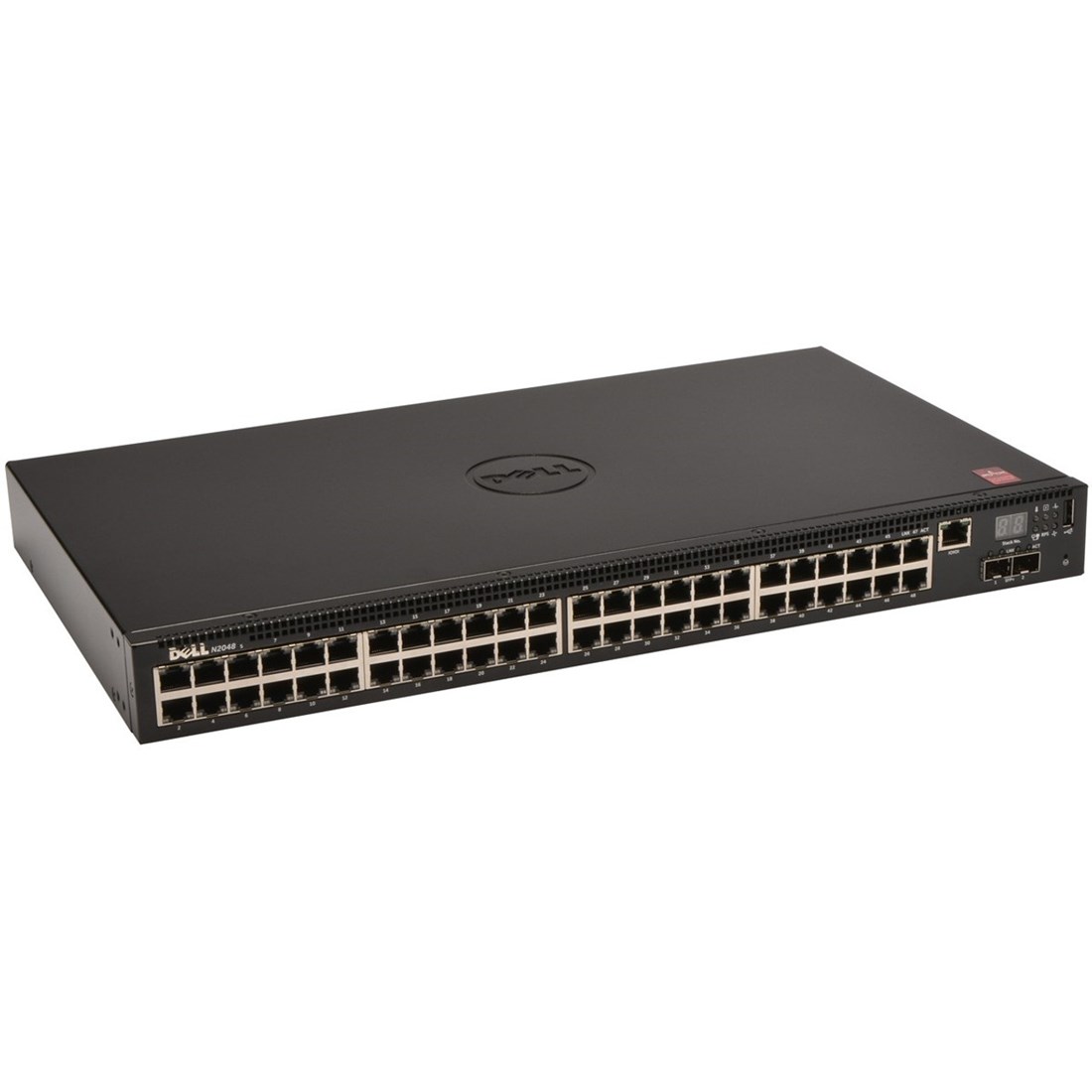

DELL 210-ADEZ N2048 Managed L2 Switch 48 Ethernet Ports & 2 10-gigabit Sfp+ Ports.
Key Features :
Device Type : Switch - 48 Ports - L2+ - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+
Performance : Switching Fabric Bandwidth: 220 Gbps Forwarding Performance: 164 Mpps Stacking Bandwidth: 84 Gbps
Capacity : Virtual Interfaces (vlans): 4096 Arp Entries: 1024 Ndp Entries: 400 Priority Queues Per Port: 8 Ipv4 Routes (static): 256 Ipv6 Routes (static): 128 Ipv4 Routes (dynamic): 256 Vlan Routing Interfaces: 256 Acl: 100 Max Acl Rules System-wide: 2048 Maximum Rules Per Acl: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256 Maximum Vlan Interfaces With Acls Applied: 24 Maximum Aggregation Groups: 128 Maximum Dynamic Ports Per Switch Stack: 144 Maximum Member Ports Per Lag: 8
Mac Address Table Size : 8192 Entries
Routing Protocol : Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Tftp
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Flow Control, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Per-vlan Spanning Tree Plus (pvst+), Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans, Protocol-based Vlans Support, Multi Chassis Link Aggregation Group (mlag)
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az
Ram : 1 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces :
48 X Gigabit Lan - Rj-45
2 X 10gbit Lan - Sfp+
1 X Serial (rs-232) - Rj-45 - Management
1 X Usb - Type A
2 X Network Stack Device
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 100 Watt
Power Consumption Operational : 53.9 Watt
Features : Redundant Power System (rps) Connector
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
