Detail overview

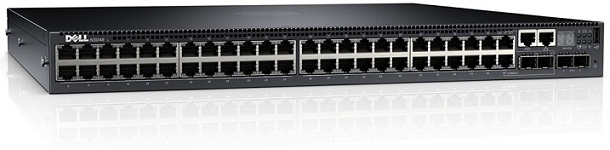

DELL 210-ADFB Networking N2048p Managed L2 Switch 48 Ethernet Ports & 2 10-gigabit Sfp+ Ports.
Key Features :
Device Type : Switch - 48 Ports - L2+ - Managed - Stackable
Enclosure Type : Front To Back Airflow Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Performance : Switching Fabric Bandwidth: 220 Gbps Forwarding Performance: 164 Mpps Stacking Bandwidth: 84 Gbps
Capacity : Virtual Interfaces (vlans): 4096 Arp Entries: 1024 Ndp Entries: 400 Priority Queues Per Port: 8 Ipv4 Routes (static): 256 Ipv6 Routes (static): 128 Ipv4 Routes (dynamic): 256 Vlan Routing Interfaces: 256 Acl: 100 Max Acl Rules System-wide: 2048 Maximum Rules Per Acl: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256 Maximum Vlan Interfaces With Acls Applied: 24 Maximum Aggregation Groups: 128 Maximum Dynamic Ports Per Switch Stack: 144 Maximum Member Ports Per Lag: 8
Mac Address Table Size : 8192 Entries
Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing
Remote Management Protocol : Telnet, Tftp
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Flow Control, Auto-negotiation, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Access Control List (acl) Support, Ipv4 Support, Energy Efficient Ethernet, Management Information Base (mib), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans
Ram : 1 Gb
Flash Memory : 256 Mb
Expansion / Connectivity
Interfaces:
48 X Gigabit Lan Rj-45 Poe+ - 30.8 W
2 X 10gbit Lan Sfp+
1 X Serial (rs-232) Rj-45 Management
1 X Usb Type A
2 X Network Stack Device
Power
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 1000 Watt
Features : Redundant Power System (rps) Connector
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
