** Image may not exactly match product **

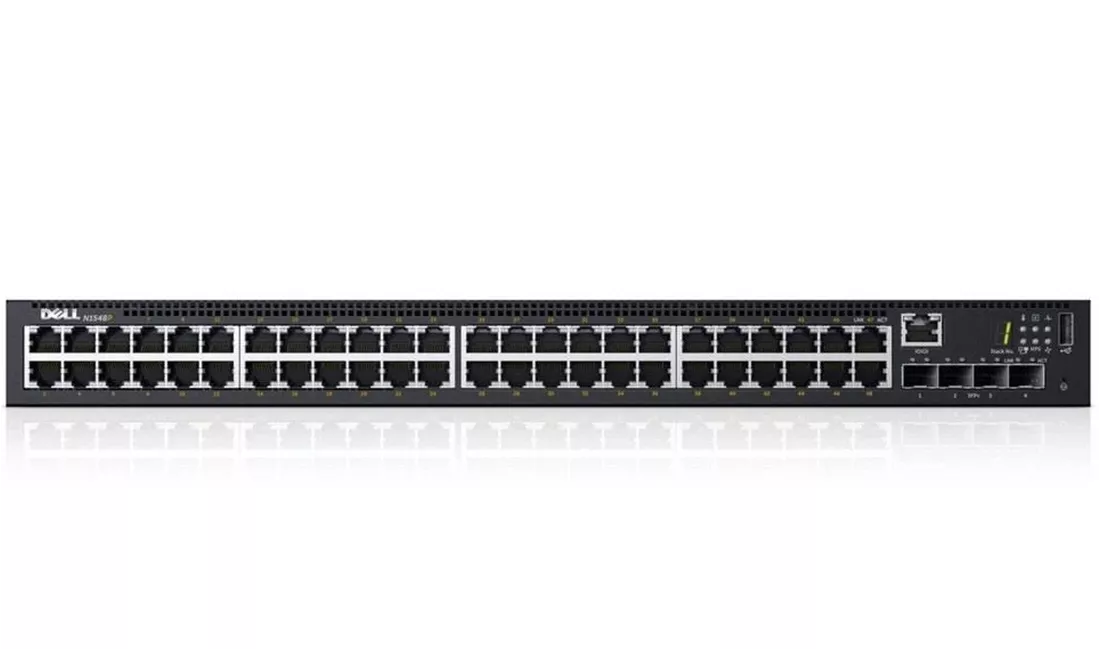

Dell 463-7282 Networking N1548P 48P 1GbE 1704W PoE+ 4P SFP+ Switch
463-7282
463-7282
463-7282
463-7282
463-7282

Dell 463-7282 Networking N1548P 48P 1GbE 1704W PoE+ 4P SFP+ Switch

Part Number: 463-7282
BRAND: DELL | More NETWORKING from DELL
$650.00

$1,000.00
You Save: $350.00 35% OFF


Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

DELL 463-7282 Networking N1548p 48p 1gbe 1704w Poe+ 4p Sfp+ Switch With Integrated Psu


Key Features :
  • Device Type : Switch 48 Ports L2+ Managed Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 4 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 30.8 W
  • Performance : Switching Fabric Bandwidth : 176 Gbps Forwarding Performance : 164 Mpps
  • Capacity : Virtual Interfaces (vlans) : 512 Arp Entries : 1024 Ndp Entries : 400 Priority Queues Per Port : 8 Ipv4 Routes (static) : 256 Ipv6 Routes (static) : 128 Ipv4 Routes (dynamic) : 256 Vlan Routing Interfaces : 128 Acl : 100 Max Acl Rules System-wide : 2048 Maximum Rules Per Acl : 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 1023 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1023 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules : 509 Maximum Vlan Interfaces With Acls Applied : 24 Maximum Dynamic Ports Per Switch Stack : 144 Maximum Member Ports Per Lag : 8 Mac Addresses : 16000
  • Mac Address Table Size : 16000 Entries
  • Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing
  • Remote Management Protocol : Telnet, Tftp
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Auto-negotiation, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Broadcast Storm Control, Front To Back Airflow, Redundant Fans
  • Ram : 1 Gb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 48 X Gigabit Lan - Rj-45
  • 4 X 10gbit Lan - Sfp+
  • 1 X Serial (rs-232) - Rj-45 - Management
  • 1 X Usb - Type A

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 1
  • Power Provided : 600 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 90 Days.
