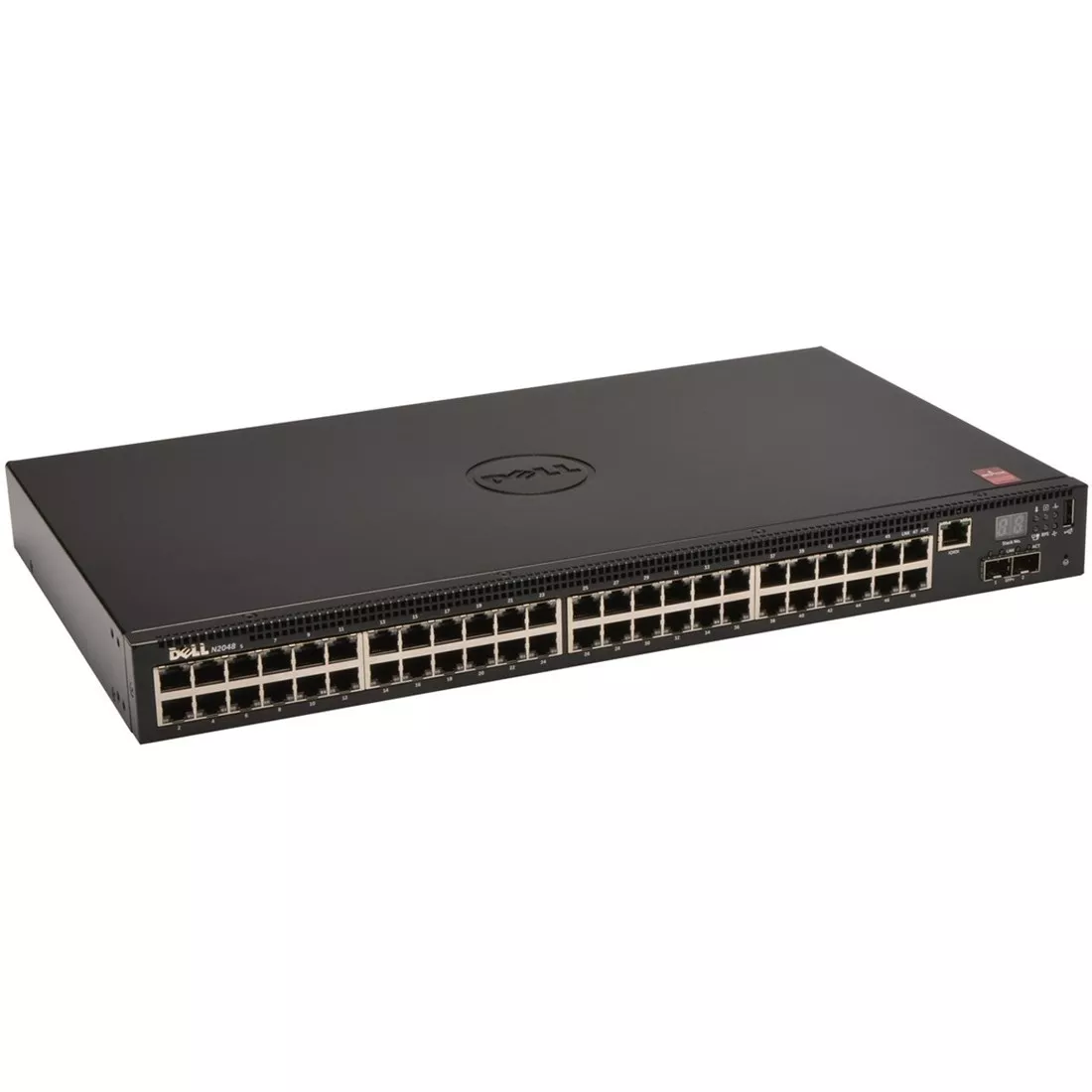

Dell 463-7701 Networking N2048 Managed L3 Switch 10Gbe SFP+ 48 Ethernet Ports
463-7701
463-7701
463-7701
463-7701
463-7701

Dell 463-7701 Networking N2048 Managed L3 Switch 10Gbe SFP+ 48 Ethernet Ports

Part Number: 463-7701
BRAND: DELL | More NETWORKING from DELL
$780.00

$1,250.00
You Save: $470.00 37% OFF


Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

DELL 463-7701 Networking N2048 Switch 48 Ports Managed Rack-mountable


Key Features :
  • Device Type : Switch 48 Ports L2+ Managed Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+
  • Performance : Switching Fabric Bandwidth: 220 Gbps Forwarding Performance: 164 Mpps Stacking Bandwidth: 84 Gbps
  • Capacity : Virtual Interfaces (vlans): 4096 Arp Entries: 1024 Ndp Entries: 400 Priority Queues Per Port: 8 Ipv4 Routes (static): 256 Ipv6 Routes (static): 128 Ipv4 Routes (dynamic): 256 Vlan Routing Interfaces: 256 Acl: 100 Max Acl Rules System-wide: 2048 Maximum Rules Per Acl: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256 Maximum Vlan Interfaces With Acls Applied: 24 Maximum Aggregation Groups: 128 Maximum Dynamic Ports Per Switch Stack: 144 Maximum Member Ports Per Lag: 8
  • Mac Address Table Size : 8192 Entries
  • Routing Protocol : Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Tftp
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Flow Control, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Per-vlan Spanning Tree Plus (pvst+), Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Neighbor Discovery Protocol (ndp), Redundant Fans, Protocol-based Vlans Support, Multi Chassis Link Aggregation Group (mlag)
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az
  • Ram : 1 Gb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 48 X Gigabit Lan - Rj-45
  • 2 X 10gbit Lan - Sfp+
  • 1 X Serial (rs-232) - Rj-45 - Management
  • 1 X Usb - Type A
  • 2 X Network Stack Device

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 1
  • Power Provided : 100 Watt
  • Power Consumption Operational : 53.9 Watt
  • Features : Redundant Power System (rps) Connector

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 90 Days.
