Detail overview

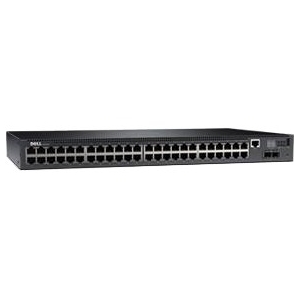

DELL 998N4 Emc Networking N3048ep-on - Switch - 48 Ports - Managed - Rack-mountable:
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
Performance : Switching Fabric Bandwidth: 260 Gbps Forwarding Performance: 193 Mpps Stacking Bandwidth: 21 Gbps
Capacity : Ipv4 Routes (static): 1024 Ipv6 Routes (static): 1024 Ipv4 Routes (dynamic): 8160 Ipv6 Routes (dynamic): 4096 Maximum Member Ports Per Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144 Lag Groups: 128 Ospf Routes: 8160 Rip Routes: 512 Ecmp Next Hops Per Route: 4 Ecmp Groups: 64 Vlan Routing Interfaces: 128 Vlans Supported: 4094 Multicast Entries (ipv4): 1536 Multicast Entries (ipv6): 512 Arp Entries: 6144 Ndp Entries: 400 Acl: 100 Maximum Rules Per Acl: 1023 Max Acl Rules System-wide: 4096 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
Ram : 2 Gb
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces :
48 X Gigabit Lan Rj-45 36 Ports (poe+) / 12 Ports (poe) - 30.8 W 2 X 10gbit Lan Sfp+ 2 X Gigabit Lan Rj-45/sfp 1 X Serial (rs-232) Rj-45 Management 1 X Usb Type A 2 X Network Stack Device
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Optional
Power Provided : 1100 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
