Detail overview

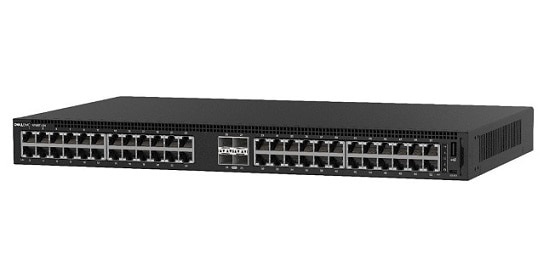

DELL Emc Networking N1148T - Switch - 48 Ports - Managed - Rack-mountable.

Key Features :

Device Type : Switch - 48 Ports - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 10/100/1000 + 4 X 10 Gigabit Sfp+

Performance : Switching Fabric Bandwidth: 176 Gbps ¦ Forwarding Performance: 132 Mpps

Capacity : Mac Addresses: 16000 ¦ Aggregated Links (dynamic): 144 ¦ Lag Groups: 64 ¦ Queues Per Port: 8 ¦ Vlans Supported: 512 ¦ Arp Entries: 2048 ¦ Ndp Entries: 400 ¦ Max Acl Rules System-wide: 4000 ¦ Acl: 100 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 253

Mac : Address Table Size 16000 Entries

Routing Protocol : Igmpv2, Igmp, Igmpv3

Remote Management Protocol : Snmp 2, Snmp, Rmon, Telnet, Http, Tftp, Ssh-2

Encryption Algorithm : Aes, Ssl, Tls 1.0

Authentication Method : Radius, Tacacs+, Ldap

Features : Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support

Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax

Ram : 1 Gb

Flash Memory : 1 Gb

Expansion / Connectivity :

Interfaces : 48 X Gigabit Lan - Rj-45 ¦ 4 X 10gbit Lan - Sfp+ ¦ 1 X Usb - Type A ¦ 1 X Micro-usb

Power :

Power Device : Internal Power Supply

Installed Qty : 1

Power Provided : 60 Watt

Power Consumption Operational : 30.18 Watt

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
