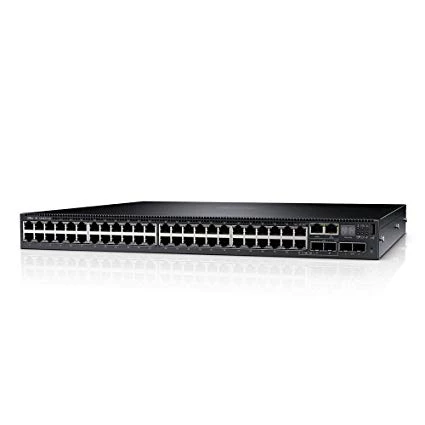

DELL N3048EP-ONF Emc Networking N3048ep-on - Switch - 48 Ports - Managed - Rack-mountable:

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : 10 Gigabit Ethernet

Ports : 48 X 10/100/1000 (poe+) + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp

Performance : Switching Fabric Bandwidth: 260 Gbps ¦ Forwarding Performance: 193 Mpps ¦ Stacking Bandwidth: 21 Gbps

Capacity : Ipv4 Routes (static): 1024 ¦ Ipv6 Routes (static): 1024 ¦ Ipv4 Routes (dynamic): 8160 ¦ Ipv6 Routes (dynamic): 4096 ¦ Maximum Member Ports Per Lag: 8 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Lag Groups: 128 ¦ Ospf Routes: 8160 ¦ Rip Routes: 512 ¦ Ecmp Next Hops Per Route: 4 ¦ Ecmp Groups: 64 ¦ Vlan Routing Interfaces: 128 ¦ Vlans Supported: 4094 ¦ Multicast Entries (ipv4): 1536 ¦ Multicast Entries (ipv6): 512 ¦ Arp Entries: 6144 ¦ Ndp Entries: 400 ¦ Acl: 100 ¦ Maximum Rules Per Acl: 1023 ¦ Max Acl Rules System-wide: 4096 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size : 32k Entries

Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2

Encryption Algorithm : Md5, Aes, Ssl, Tls

Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support

Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax

Ram : 2 Gb

Flash Memory : 1 Gb

Expansion / Connectivity :
Interfaces :

48 X Gigabit Lan Rj-45 36 Ports (poe+) / 12 Ports (poe) - 30.8 W ¦ 2 X 10gbit Lan Sfp+ ¦ 2 X Gigabit Lan Rj-45/sfp ¦ 1 X Serial (rs-232) Rj-45 Management ¦ 1 X Usb Type A ¦ 2 X Network Stack Device

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 2 (installed) / 2 (max)

Power Redundancy : Optional

Power Provided : 1100 Watt

Condition : Refurbished
Availability : In Stock
Our Warranty : 30 Days
