Detail overview

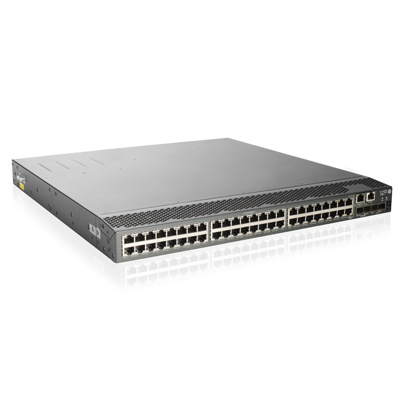

HPE - 5830af-48g Switch With 1 Interface Slot - Switch - 48 Ports - Managed - Rack-mountable (JC691A).
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed
Enclosure Type : Rack-mountable - 1u
Ports : 48 X 10/100/1000 + 2 X Shared Sfp + 2 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
Performance : Switching Capacity : 160 Gbps Throughput : 119 Mpps
Capacity : Routing Table Entries : 12000
Mac Address Table Size : 32000 Entries
Routing Protocol : Ospf, Rip, Bgp-4, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Pim-ssm, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Mldv2, Mld
Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Cli
Encryption Algorithm : Md5, Ike, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Dhcp Support, Vlan Support, Igmp Snooping, Port Mirroring, Mac Address Filtering, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sflow, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Mld Snooping, Per-vlan Spanning Tree Plus (pvst+), Device Link Detection Protocol (dldp) Support, Rapid Ring Protection Protocol (rrpp) Support, Equal-cost Multipath (ecmp), Endpoint Admission Defense (ead), Lldp Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3at
Ram : 1 Gb
Flash Memory : 64 Mb
Expansion / Connectivity :
Interfaces : 48 X 10base-t/100base-tx/1000base-t - Rj-45 2 X Sfp (mini-gbic) 2 X Sfp+ Serial : 1 X Console - Rj-45 1 X Rj-45 - Management
Expansion Slot(s) : 1 (total) / 1 (free) X Expansion Slot
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
