Detail overview

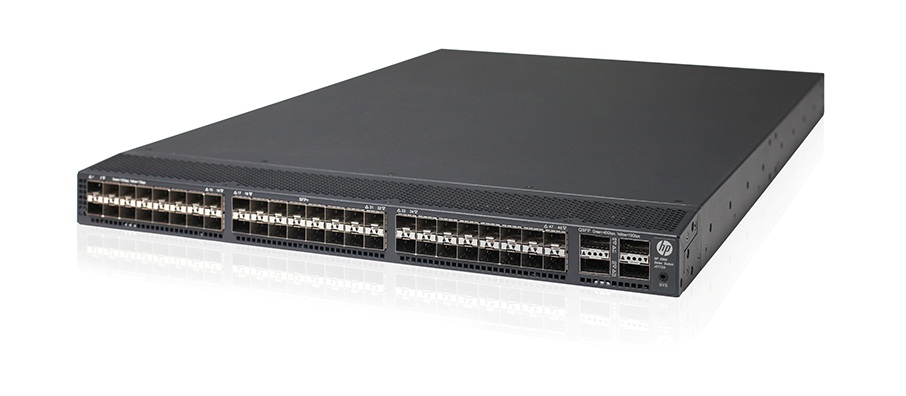

Hpe - 5900af-48xg-4qsfp+ Switch - Manageable - 52 X Expansion Slots (jc772a).

Key Features :

  • Device Type : Switch - 48 Ports - Managed
  • Enclosure Type : Rack-mountable - 1u
  • Ports : 48 X 1 Gigabit / 10 Gigabit Sfp+ + 4 X 40 Gigabit Qsfp+
  • Performance : Throughput : 952 Mpps Routing/switching Capacity : 1280 Gbps
  • Capacity : Routing Table Entries : 16000
  • Mac Address Table Size : 128k Entries
  • Jumbo Frame Support : Yes
  • Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Static Ip Routing, Ecmp
  • Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Cli
  • Authentication Method : Secure Shell (ssh), Secure Shell V.2 (ssh2)
  • Features : Dhcp Support, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Weighted Random Early Detection (wred), Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ab (lldp)
  • Ram : 2 Gb - Sdram
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
  • Interfaces : 48 X 10gb Ethernet - Sfp+ 4 X 40gb Ethernet - Qsfp+ Serial : 1 X Console - Rj-45 - Management Hi-speed Usb : 1 X 4 Pin Usb Type A 1 X Rj-45 - Management

    Power :
  • Power Device : Power Supply - Hot-plug - Plug-in Module
  • Installed Qty : 0 (installed) / 2 (max)
  • Power Redundancy : Optional
  • Power Redundancy Scheme : 1+1 (with Optional Power Supply)
  • Voltage Required : Ac 120/230 V ( 50/60 Hz )
  • Power Consumption Operational : 260 Watt

    Condition : Refurbished.
    Availability : In Stock.
    Our Warranty : 30 Days.
