Detail overview

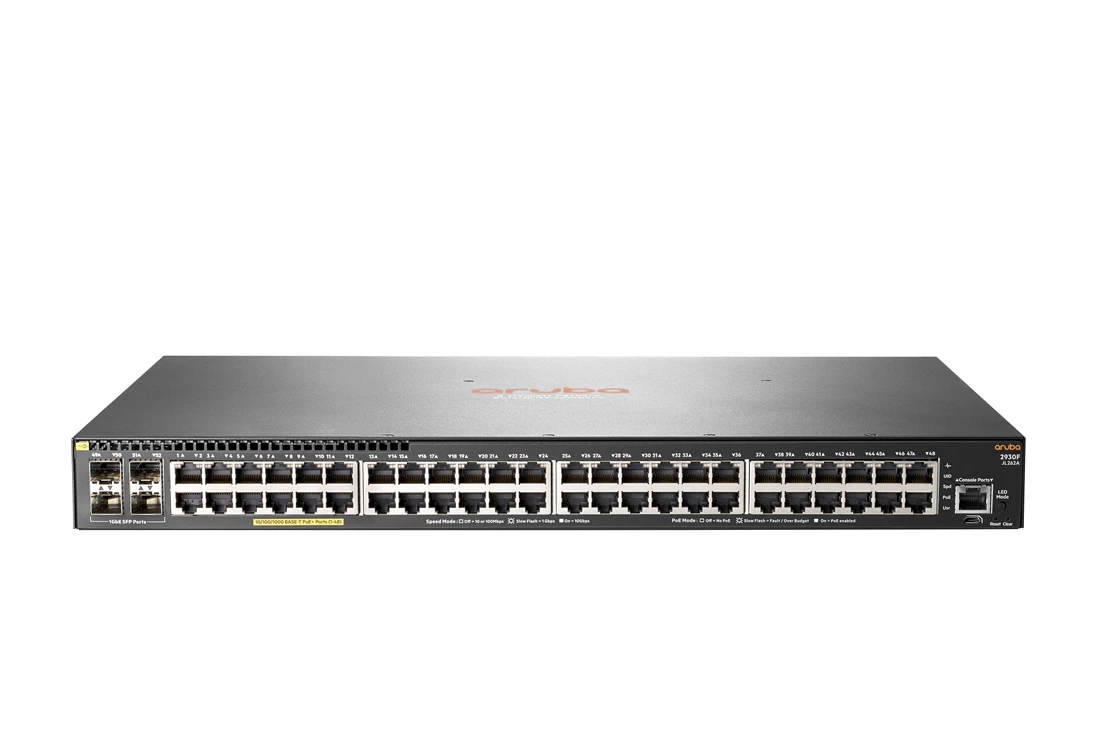

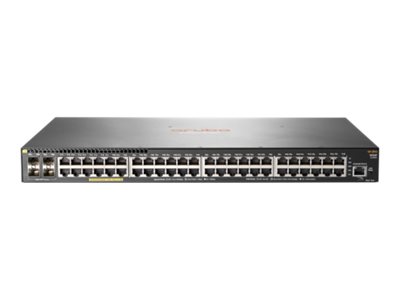

HPE JL262A Aruba 2930f 48g Poe+ 4sfp - Switch - 48 Ports - Managed - Rack-mountable:
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X Gigabit Sfp (uplink)
Performance : Throughput : 77.4 Mpps ¦ Switching Capacity : 104 Gbps ¦ Latency (1 Gbps) : 3.8 Μs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Snmp Support, Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-a9 : 1.016 Ghz
Ram : 1 Gb - Ddr3 Sdram
Flash Memory : 4 Gb
Expansion / Connectivity :
Interfaces : 48 X 1000base-t - Rj-45 - Poe+ ¦ 4 X Gigabit Lan - Sfp ¦ 1 X Serial (console)
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Installed Modules Qty (max) : 0 (installed) / 4 (max)
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 459 Watt
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 48.6 Watt
Condition : New Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
