Detail overview

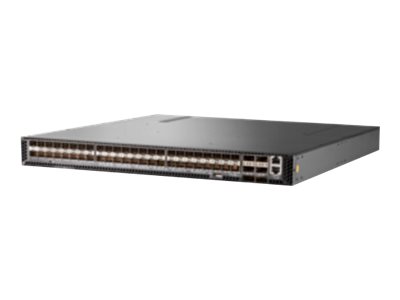

Hpe Jl317-61001 Altoline 6921 48sfp+ 6qsfp+ X86 Onie Ac Front-to-back Switch - Switch - 48 Ports - Managed - Rack-mountable.

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 48 X 1 Gigabit / 10 Gigabit Sfp+ + 6 X 40 Gigabit Qsfp+
  • Performance : Latency (40 Gbps): 0.6 Μs ¦ Routing/switching Capacity: 1440 Gbps ¦ Throughput: 1 Bpps
  • Capacity : Virtual Interfaces (vlans): 4096 ¦ Ipv4 Routing Table Entries: 64000 ¦ Ipv6 Routing Table Entries: 20000
  • Mac Address Table Size : 320k Entries
  • Remote Management Protocol : Snmp, Telnet, Cli
  • Features : Front To Back Airflow, 12mb Packet Buffer, Redundant Fans, 5 Fans
  • Compliant Standards : Ieee 802.3z, Ieee 802.3ae
  • Processor : 1 X Intel Atom: 2.4 Ghz
  • Ram : 8 Gb Ddr3 Sdram
  • Flash Memory : 8 Gb

    Expansion / Connectivity :
  • Interfaces : 48 X Gigabit / 10gbit Lan Sfp+ ¦ 6 X 40gbit Lan Qsfp+ ¦ 1 X Serial (console) Rj-45 ¦ 1 X Management Rj-45 ¦ 1 X Usb 2.0

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 2 (installed) / 2 (max)
  • Power Redundancy : Yes
  • Power Redundancy Scheme : 1+1
  • Voltage Required : Ac 120/230 V (60 Hz)
  • Power Consumption Operational : 282 Watt

    Condition : Refurbished
    Availability : In Stock
    Our Warranty : 30 Days
