Detail overview

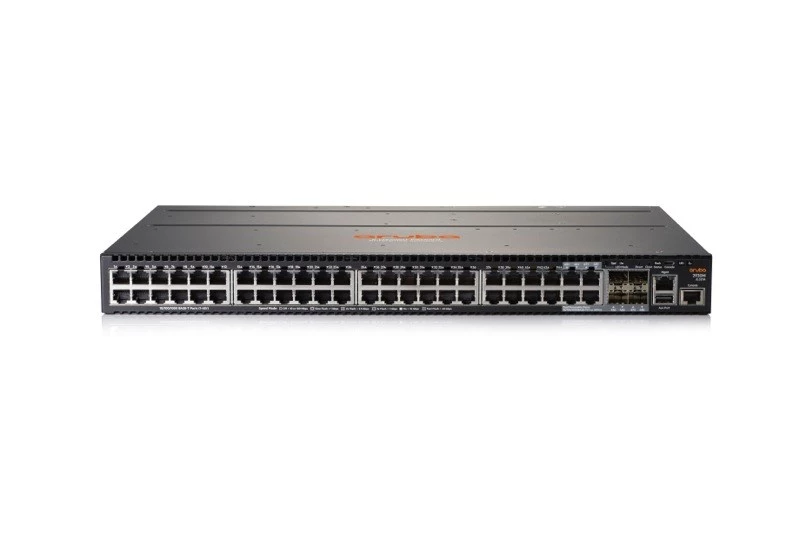

Hpe Jl321-61001 Aruba 2930m 48g 1-slot Switch 48 Ports Managed Rack Mountable :

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 44 X 10/100/1000 + 4 X Combo Gigabit Sfp

Performance : Throughput: 112 Mpps Latency (10 Mbps): 98.5 Μs Latency (100 Mbps): 11.8 Μs Latency (1 Gbps): 3.1 Μs Latency (10 Gbps): 3.4 Μs

Stacking Bandwidth: 100 Gbps Switching Capacity: 176 Gbps

Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256 Ospf Routes: 200

Mac Address Table Size : 32768 Entries

Jumbo Frame Support : 9220 Bytes

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mldv2, Mld, Cidr

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon

Encryption Algorithm : Md5, Ssl

Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+

Features : Flow Control, Dhcp Support, Bootp Support, Vlan Support, Igmp Snooping, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Quality Of Service (qos), Dhcp Server, Front To Back Airflow, Stp Root Guard, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Type Of Service (tos), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan)

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1ax

Processor : 1 X Arm Cortex-a9: 1.016 Ghz

Ram : 1 Gb Ddr3 Sdram

Flash Memory : 4 Gb

Expansion / Connectivity
Interfaces :

44 X 1000base-t - Rj-45

4 X Gigabit Lan

1 X Serial (console) - Rj-45

1 X Usb - Type B

1 X Management - Rj-45

Expansion Slots :

1 (total) / 1 (free) X Stacking Module Slot

1 (total) / 1 (free) X Expansion Slot

Power :

Power Device : Internal Power Supply

Installed Qty : 0 (installed) / 2 (max)

Voltage Required : Ac 120/230 V (50/60 Hz)

Condition : New Retail Factory Sealed.
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days.
