Detail overview

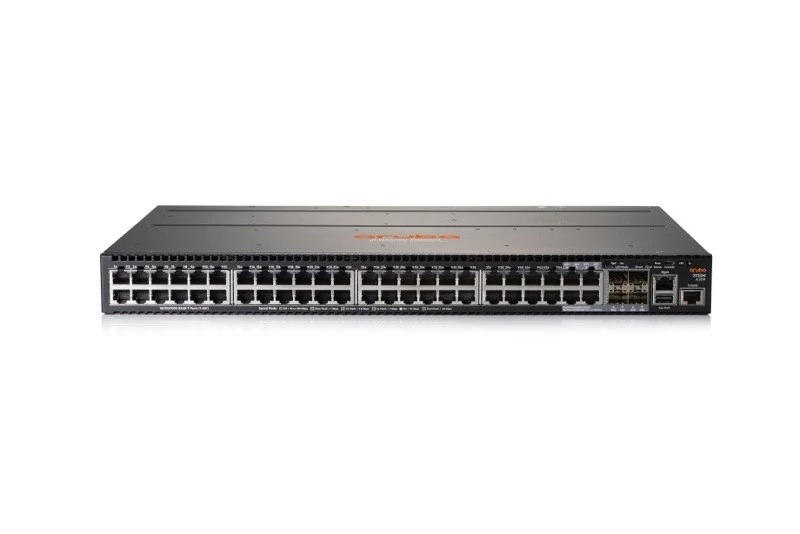

HPE JL321A Aruba 2930m 48g 1slot Switch 48 Ports Managed Rack-mountable.
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 44 X 10/100/1000 + 4 X Combo Gigabit Sfp
Performance : Throughput: 112 Mpps Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8 Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4 Stacking Bandwidth: 100 Gbps Switching Capacity: 176 Gbps
Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256 Ospf Routes: 200
Mac Address Table Size : 32768 Entries
Jumbo Frame Support : 9220 Bytes
routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mldv2, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Features : Flow Control, Dhcp Support, Bootp Support, Vlan Support, Igmp Snooping, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Quality Of Service (qos), Dhcp Server, Front To Back Airflow, Stp Root Guard, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Type Of Service (tos), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan)
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-a9: 1.016 Ghz
Ram : 1 Gb Ddr3 Sdram
Flash Memory : 4 Gb
Expansion / Connectivity
Interfaces :
44 X 1000base-t - Rj-45
4 X Gigabit Lan
1 X Serial (console) - Rj-45
1 X Usb - Type B
1 X Management - Rj-45
Expansion Slots :
1 (total) / 1 (free) X Stacking Module Slot
1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply
Installed Qty : 0 (installed) / 2 (max)
Voltage Required : Ac 120/230 V (50/60 Hz)
Condition : Refurbished.
Availability : In Stock
Our Warranty : 30 Days.
