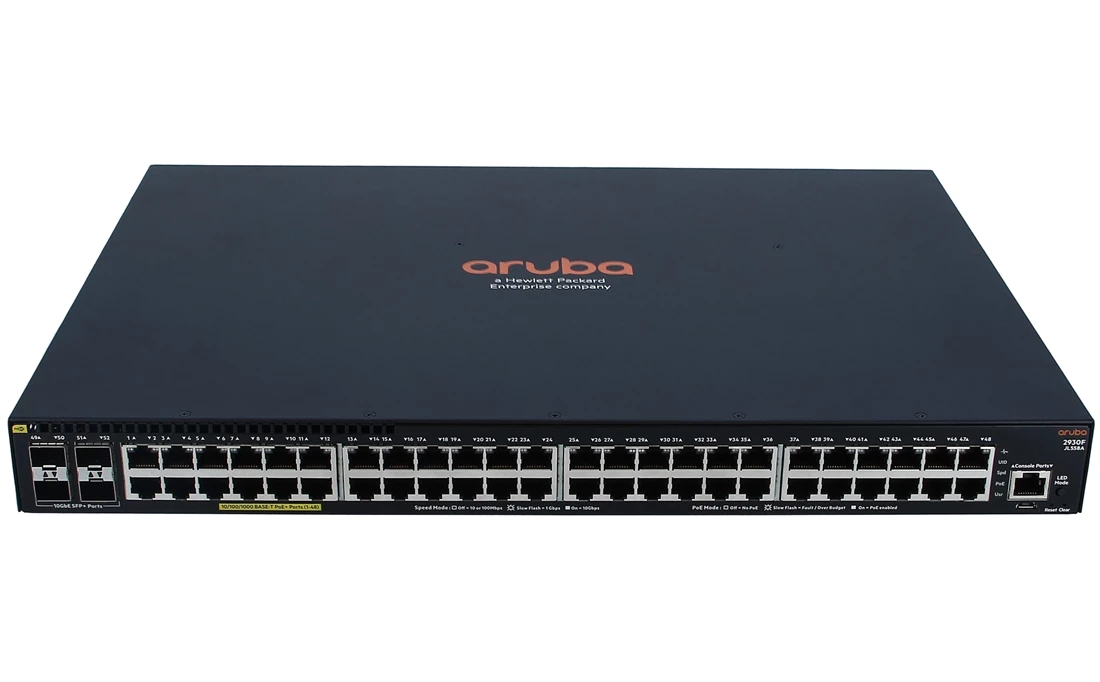

HPE Aruba JL558A 2930F 48G PoE+ 4SFP+ 740W Switch NEW

HPE Aruba JL558A 2930F 48G PoE+ 4SFP+ 740W Switch NEW

Part Number: JL558A
BRAND: HPE | More NETWORKING from HPE
$2,350.00
$5,000.00 You Save: $2,650.00 53% OFF
Capacity: 48 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE JL558A Aruba 2930f 48g Poe+ 4sfp+ - Switch - L3 - Managed - 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) - Rack-mountable - Poe+ (740 W).

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)

Power Over Ethernet (poe) : Poe+

Poe Budget : 740 W

Performance : Throughput: 112 Mpps , Switching Capacity: 176 Gbps , Latency (1 Gbps): 3.8 Us , Latency (10 Gbps): 1.6 Us

Capacity : Jumbo Frame Size: 9220 , Ipv4 Routing Table Entries: 10000 , Ipv6 Routing Table Entries: 5000

Mac Address Table Size : 32k Entries

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon

Encryption Algorithm : Md5, Ssl

Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+

Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax

Processor : 1 X Arm Cortex-a9: 1.016 Ghz

Ram : 1 Gb Ddr3 Sdram

Flash Memory : 4 Gb

Expansion / Connectivity :
Interfaces :

48 X 1000base-t Rj-45 Poe+

4 X Gigabit / 10gbit Lan Sfp+

1 X Serial (console)

Expansion Slots : 1 (total) / 1 (free) X Expansion Slot

Installed Modules Qty (max) : 0 (installed) / 4 (max)

Power :

Power Device : Internal Power Supply

Installed Qty : 1

Voltage Required : Ac 120/230 V (50/60 Hz)

80 Plus Certification : 80 Plus Silver
HPE JL558A Aruba 2930f 48g Poe+ 4sfp+ - Switch - L3 - Managed - 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) - Rack-mountable - Poe+ (740 W).
