Detail overview

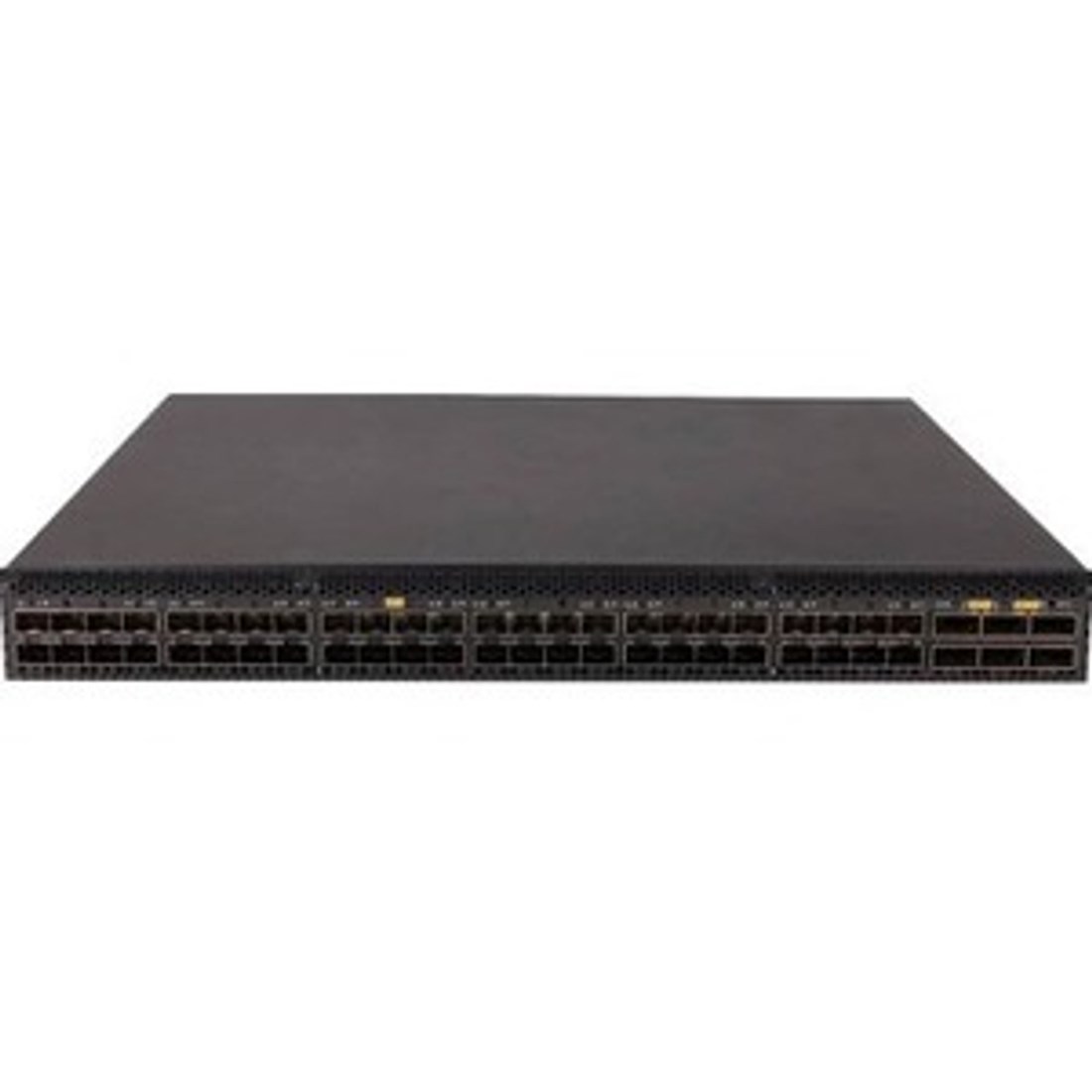

HPE JL585A Flexfabric 5710 48sfp+ 6qs+/2qs28 - Switch - 48 Ports - Managed - Rack-mountable :

Key Feature :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : 10 Gigabit Ethernet

Ports : 48 X 1 Gigabit / 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe+

Performance : Throughput: 1071 Mpps , Routing/switching Capacity: 1440 Gbps , Latency (10 Gbps): 1.5

Capacity : Ipv4 Routing Table Entries: 16000 , Ipv6 Routing Table Entries: 8000 , Virtual Interfaces (vlans): 4094 , Arp Entries: 68000 , Static Arp Entries: 1000

Mac Address Table Size : 208000 Entries

Jumbo Frame Support : Yes

Routing Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mpls, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Ssh-2, Cli

Features : Flow Control, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Sntp Support, Weighted Fair Queuing (wfq), Weighted Random Early Detection (wred), Sflow, Pim Snooping, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Tunneling, Data Center Bridging Exchange (dcbx) Support, Priority-based Flow Control, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Ipv4 Support, Lldp Support, Dhcp Relay, Port Security, Data Center Bridging (dcb), Role Based Access Control, Management Information Base (mib), Ntp Time Synchronization, 12mb Packet Buffer, Fcoe Forwarding, Class Of Service (cos), Strict Priority (sp), Intelligent Resilient Framework Technology (irf), Diffserv Code Point (dscp) Support, Fcoe Support, Top-of-rack (tor), 4 Fan Tray Slots

Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.3ag

Ram : 4 Gb Sdram

Flash Memory : 1 Gb

Expansion / Connectivity :
Interfaces :

48 X Gigabit / 10gbit Lan Sfp+

1 X 10/100/1000 Base-t Management

1 X Sfp Management

1 X Console (mini-usb)

1 X Serial (console) Rj-45

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 0 (installed) / 2 (max))

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Condition : New Factory Sealed
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 30 Days
