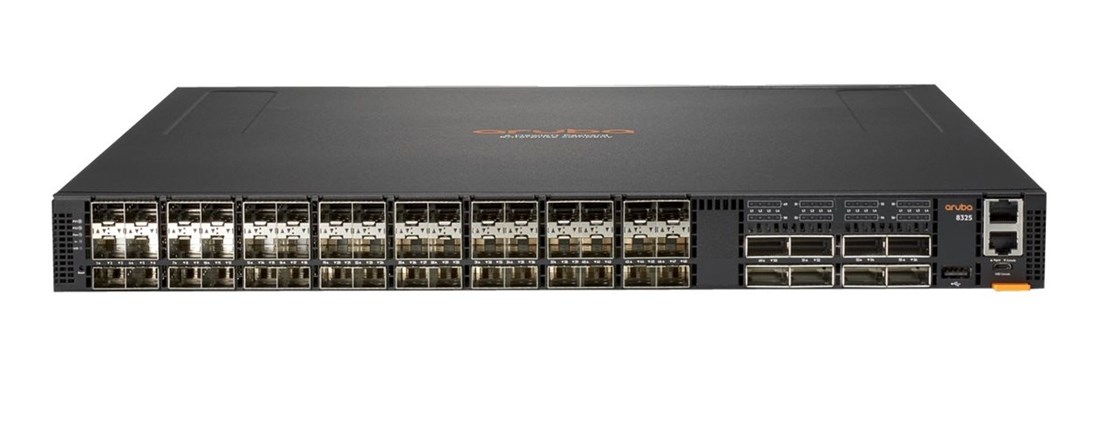

HPE JL624-61101 Aruba 8325-48Y8C 48P 25G Sfp/+/28 8P 100G Switch
JL624-61101
JL624-61101
JL624-61101
JL624-61101
JL624-61101

HPE JL624-61101 Aruba 8325-48Y8C 48P 25G Sfp/+/28 8P 100G Switch

Part Number: JL624-61101
BRAND: HPE | More NETWORKING from HPE
$14,100.00
Capacity: 48 PORT

Quantity :
Upto 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE JL624-61101 Aruba 8325-48y8c - Switch - L3 - Managed - 48 X 10/25 Gigabit Sfp+ / Sfp28 + 8 X 40/100 Gigabit Qsfp+ / Qsfp28 - Front To Back Airflow - Rack-mountable (added 1x 8325-48y8c Switch, 6x Front-to-back Fan, 2x Front-to-back 650w 100-240vac Power Supply).

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed
  • Enclosure Type : Front To Back Airflow Rack-mountable 1u
  • Subtype : 100 Gigabit Ethernet
  • Ports : 48 X 10/25 Gigabit Sfp+ / Sfp28 + 8 X 40/100 Gigabit Qsfp+ / Qsfp28
  • Performance : Switching Capacity: 6.4 Tbps , Throughput: 1.905 Mpps
  • Capacity : Virtual Interfaces (vlans) Per Port For 802.1q: 4096
  • Jumbo Frame Support : 9kb
  • Routing Protocol : Ospf, Egp, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Pim-sm, Static Ip Routing, Igmpv3, Gre, Ospfv3, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mld, Mstp, Rstp, Stp
  • Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp, Ntp
  • Encryption Algorithm : Fips 140-2
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Routing, Dhcp Support, Vpn Support, Arp Support, Vlan Support, Igmp Snooping, Port Mirroring, Manageable, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Link Aggregation Control Protocol (lacp), Fan Tray, Redundant Hot Swappable Fans, Packet Storm Protection, Strict Priority (sp), Loopback, Vxlan Tunnel Endpoints (vtep) Support, Protocol Independent Multicast (pim)
  • Compliant Standards : Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3ba, Ieee 802.1ax

    Expansion / Connectivity :
    Interfaces :
  • 48 X 10/25gbit Lan
  • 8 X 100gbit/40gbit Lan

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 2
  • Max Supported Qty : 2
  • Power Redundancy : Yes
  • Power Redundancy Scheme : N+1
  • Power Provided : 650 Watt
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    Condition : New Factory Sealed
    Availability : In Stock
    Manufacturer Warranty : Standard
    Our Warranty : 90 Days
