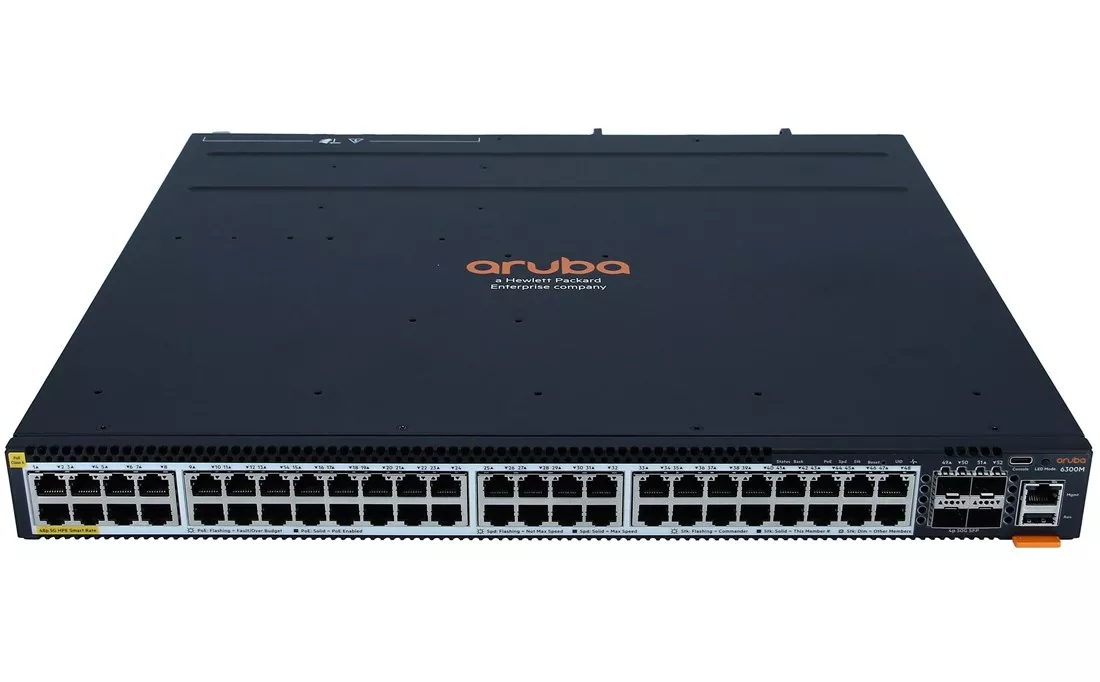

HPE JL659A#ABA Aruba 6300M 48p SR 1/2.5/5GbE Cl6 PoE and 4p SFP56 Switch F/S

HPE JL659A#ABA Aruba 6300M 48p SR 1/2.5/5GbE Cl6 PoE and 4p SFP56 Switch F/S

Part Number: JL659A
BRAND: HPE | More NETWORKING from HPE
$7,499.00
Capacity: 48 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE JL659A Aruba 6300m 48-port HPE Smart Rate 1/2.5/5gbe Class 6 Poe+ And 4-port Sfp56 Switch ( No Psu Added - Minimum 1 Required - Max 2 - Ordered Separately) :

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : 5 Gigabit Ethernet

Ports : 48 X 100/1000/2.5g/5g (poe+) + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)

Power Over Ethernet (poe) : Poe+

Poe Budget : 2880 W

Performance : Switching Capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 Μs ¦ Latency (10 Gbps): 1.5 Μs ¦ Latency (25 Gbps): 2.91 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps

Capacity : Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)

Remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Strict Priority (sp), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Front To Side Airflow, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt

Processor : 1 X Arm Cortex-a72: 1.78 Ghz

Ram : 8 Gb Ddr4 Sdram

Flash Memory : 32 Gb

Expansion / Connectivity :
Interfaces :

48 X 100/1000/2.5g/5g Rj-45 Poe+ - 60 W

4 X 1gbit/10gbit/25gbit/50gbit Sfp56 ¦ 1 X Usb-c Console

1 X Management

1 X Usb Type A

Power :

Power Device : Internal Power Supply

Installed Qty : 0 (installed) / 2 (max) ( Minimum 1 Required)

80 Plus Certification : 80 Plus Silver

Energy Star Certified : Yes

Max Poe Power: 2880w

Supported Psu: Jl086a, Jl087a, Jl670a

Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
