Detail overview

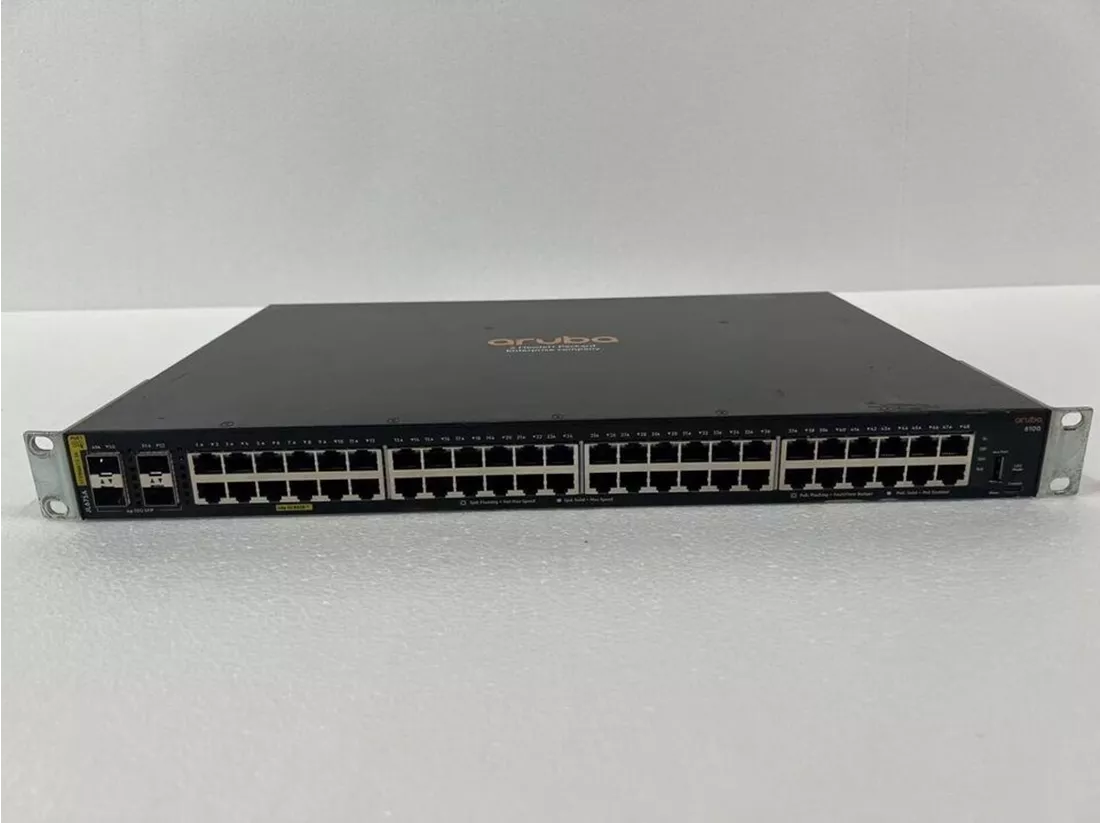

HPE JL675A Aruba 6100 48g Class4 Poe 4sfp+ 370w Switch - Switch -48 Ports - Managed - Rack-mountable :
Key Features :
Device Type : Switch - 52 Ports - L3 - Managed - Stackable
Enclosure Type : Side To Side Airflow Rack-mountable 1u
Subtype: 10 Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Switching Capacity: 176 Gbps Throughput: 98.6 Latency (1 Gbps): 1.9 Latency (10 Gbps): 1.8
Capacity : Switched Virtual Interfaces (svis): 16 Arp Entries: 1024 Ipv4 Routes (unicast): 512 Ipv6 Routes (unicast): 512 Igmp Groups: 512 Mld Groups: 512 Ipv4 Acl Entries (ingress): 256 Ipv6 Acl Entries (ingress): 128 Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces :
48 X 10/100/1000 Base-t Rj-45 Poe+
4 X 1/10gbit Lan Sfp+
1 X Usb-c Console
1 X Usb Type A
Power :
Power Device : Internal Power Supply
Power Provided : 500 Watt
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 30.6 Watt
Condition : New Retail Factory Sealed
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
