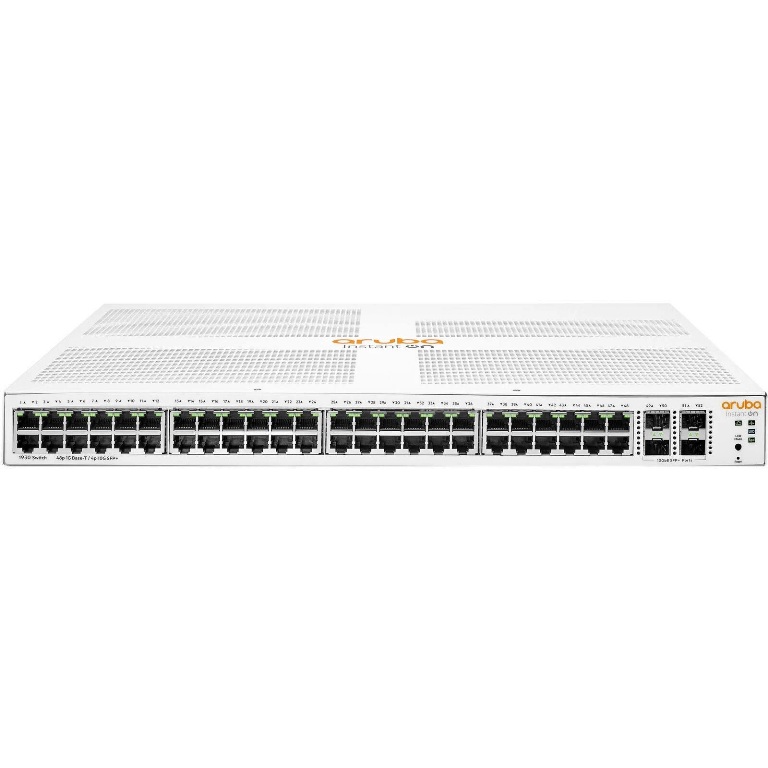

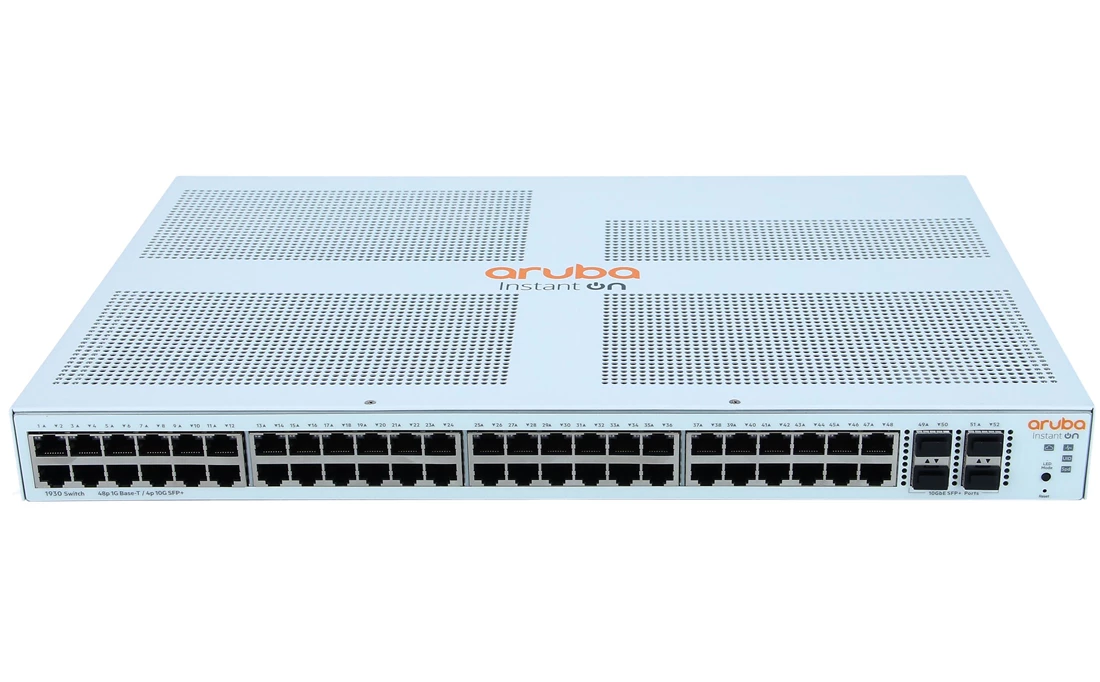

HPE JL685-61101 Aruba Instant On 1930 48g 4Sfp/Sfp+ Switch
JL685-61101
JL685-61101
JL685-61101
JL685-61101
JL685-61101

HPE JL685-61101 Aruba Instant On 1930 48g 4Sfp/Sfp+ Switch

Part Number: JL685-61101
BRAND: HPE | More NETWORKING from HPE
$510.00

$700.00
You Save: $190.00 27% OFF


Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE JL685-61101 Aruba Instant On 1930 48g 4sfp/sfp+ Switch - Switch - 48 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 48 Ports - L2+ - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Performance : Throughput: 130.95 Mpps ¦ Switching Capacity: 176 Gbps ¦ Latency (1 Gbps): 2.2 Μs ¦ Latency (10 Gbps): 1.2 Μs
  • Capacity : Routing Table Entries (static): 32
  • Mac Address Table Size : 16k Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Igmpv2, Igmp, Static Ipv4 Routing, Mstp, Rstp, Stp
  • Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Scp, Dhcp, Ipv4, Ipv6
  • Encryption Algorithm : Ssl
  • Authentication Method : Radius
  • Features : Flow Control, Dhcp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Port Mirroring, Manageable, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Trusted Platform Module (tpm), Ipv4 Support, Lacp Support, Lldp Support, Link Aggregation Control Protocol (lacp), Class Of Service (cos), Snmp Support, 1.5mb Packet Buffer, Bridge Protocol Data Unit (bpdu), Lldp-med, Energy-efficient Ethernet (eee)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3az
  • Processor : 1 X Arm Cortex-a9: 800 Mhz
  • Ram : 512 Mb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 48 X 1000base-t Rj-45
  • 4 X Gigabit / 10gbit Lan Sfp+

    Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    Condition : New Factory Sealed
    Availability : In Stock
    Our Warranty : 90 Days
