Detail overview

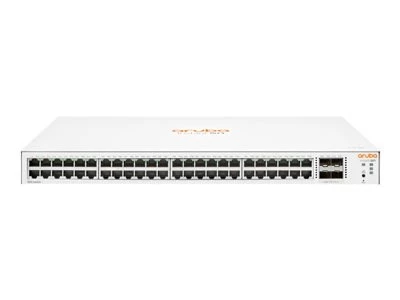

HPE JL814-61001 Aruba Instant On 1830 48g 4sfp Switch - Switch - 48 Ports - Smart - Rack-mountable :

Key Features :

Device Type : Switch - 48 Ports - Smart

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 10/100/1000 + 4 X Gigabit Sfp

Performance : Latency (100 Mbps): 5.2 Μs ¦ Latency (1 Gbps): 2.8 Μs ¦ Throughput: 77.37 Mpps ¦ Switching Capacity: 104 Gbps

Mac Address Table Size : 16000 Entries

Jumbo Frame Support : 9216 Bytes

Routing Protocol : Igmpv2, Igmp

Remote Management Protocol : Snmp 1, Snmp 2c, Http, Https, Tftp, Scp, Icmp

Features : Flow Control, Auto-sensing Per Device, Auto-negotiation, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Port Mirroring, Firmware Upgradable, Sntp Support, Wall Mountable, Spanning Tree Protocol (stp) Support, Event Log, Quality Of Service (qos), Trusted Platform Module (tpm), Cable Diagnostics Function, Lldp Support, Dhcp Client, Class Of Service (cos), Cloud Managed, 1.5mb Packet Buffer, Secure Copy (scp), Link Aggregation, Dual Image Support, Denial Of Service (dos) Protection, Energy-efficient Ethernet (eee), Bpdu Filter, Loop Protection, Global Storm Control, Port Scheduling

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ac, Ieee 802.1ab (lldp), Ieee 802.3az

Processor : 1 X Arm: 800 Mhz

Ram : 512 Mb Sdram

Flash Memory : 256 Mb

Status Indicators : Port Status, Port Duplex Mode, Link/activity, Speed

Expansion / Connectivity :
Interfaces :

48 X 1000base-t Rj-45

4 X Gigabit Lan Sfp

Power :

Power Device : Internal Power Supply

Voltage Required : Ac 100-240 V (50/60 Hz)

Power Consumption Operational : 40.2 Watt

Condition : New Retail Factory Sealed
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 30 Days
