Detail overview

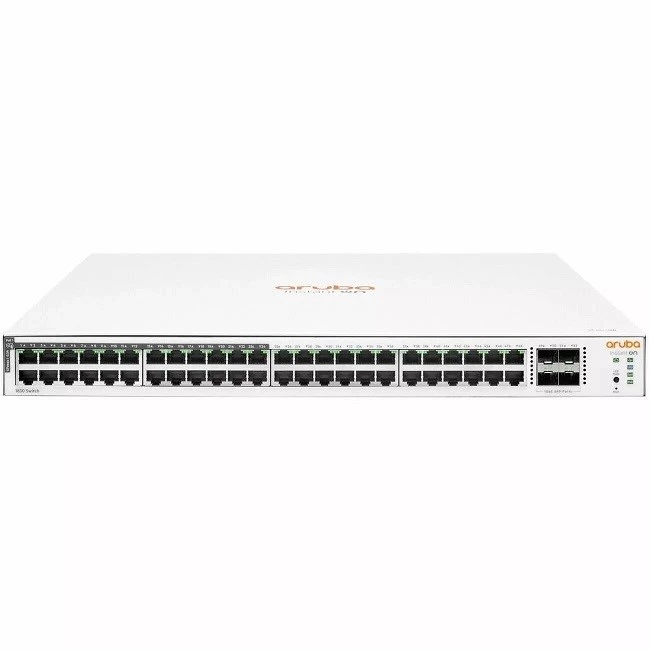

Hpe Jl815a Aruba Instant On 1830 48g 24p Class4 Poe 4sfp 370w Switch 48 Ports Smart Rack Mountable.

Key Features :

  • Device Type : Switch - 48 Ports - Smart
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 24 X 10/100/1000 (poe+) + 4 X Gigabit Sfp
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 370 W
  • Performance : Latency (100 Mbps): 5.2 , Latency (1 Gbps): 2.8 , Throughput: 77.37 Mpps , Switching Capacity: 104 Gbps
  • Mac Address Table Size : 16000 Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Igmpv2, Igmp
  • Remote Management Protocol : Snmp 1, Snmp 2c, Http, Https, Tftp, Scp, Icmp
  • Features : Flow Control, Auto-sensing Per Device, Auto-negotiation, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Port Mirroring, Firmware Upgradable, Sntp Support, Wall Mountable, Spanning Tree Protocol (stp) Support, Event Log, Quality Of Service (qos), Trusted Platform Module (tpm), Cable Diagnostics Function, Lldp Support, Dhcp Client, Class Of Service (cos), Cloud Managed, 1.5mb Packet Buffer, Secure Copy (scp), Link Aggregation, Dual Image Support, Denial Of Service (dos) Protection, Energy-efficient Ethernet (eee), Bpdu Filter, Loop Protection, Global Storm Control, Port Scheduling
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ac, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az

    Expansion / Connectivity
    Interfaces
  • 24 X 1000base-t Rj-45
  • 4 X Gigabit Lan Sfp
  • 24 X 1000base-t Rj-45 Poe+

    Power
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-240 V (50/60 Hz)
  • Power Consumption Operational : 462.5 Watt

    Condition : New Retail Factory Sealed.
    Availability : In Stock.
    Manufacturer Warranty : Limited Lifetime.
    Our Warranty : 30 Days.
