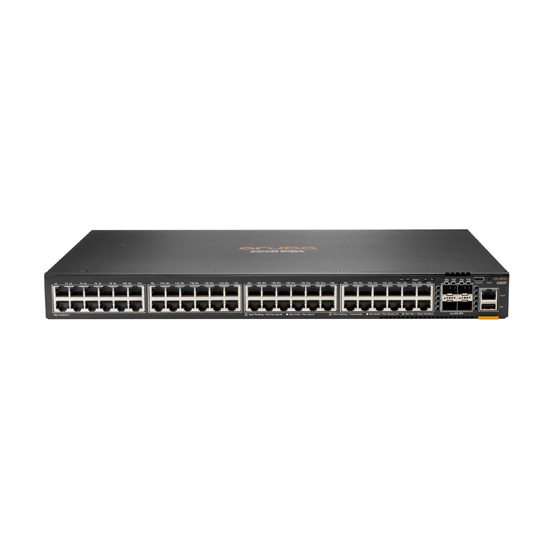

HPE R8N85A Aruba 6000 48g Class4 Poe 4sfp 370w Switch - Switch - 48 Ports - Managed - Rack-mountable.

Key Feature:

Device Type: Switch - 48 Ports - Managed - Stackable

Enclosure Type: Side To Side Airflow Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 (poe+) + 4 X Gigabit Sfp

Power Over Ethernet (poe): Poe

Poe Budget: 370 W

Performance: Packet Buffer Size: 12.38 Mb Throughput: 77.3 Mpps , Switching Capacity: 104 Gbps , Latency (1 Gbps): 1.9 Us

Capacity: Switched Virtual Interfaces (svis): 16 , Arp Entries: 1024 , Ipv4 Routes (unicast): 512 , Ipv6 Routes (unicast): 512 , Igmp Groups: 512 , Mld Groups: 512 , Ipv4 Acl Entries (ingress): 256 , Ipv6 Acl Entries (ingress): 128 , Mac Acl Entries (ingress): 256

Mac Address Table Size: 8192 Entries

Jumbo Frame Support: 9198 Bytes

Routing Protocol: Igmpv2, Igmpv3

Remote Management Protocol: Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius

Features: Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing.

Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az

Power: Ac 100-240 V (50/60 Hz)

Flash Memory: 16 Gb

Ram: 4 Gb Ddr3 Sdram

Processor: 1 X Arm A9: 1.016 Ghz

Expansion / Connectivity:
Interfaces:

48 X 10/100/1000 Base-t Rj-45 Poe Class 4 - 370 W

4 X Gigabit Lan Sfp

1 X Usb Type A

1 X Usb-c Console

Power:

Power Device: Internal Power Supply

Voltage Required: Ac 100-240 V (50/60 Hz)

Power Consumption Operational: 45 Watt

Condition : New Retail Factory Sealed
Availability : In Stock.
Manufacturer Warranty : Standard Warranty
Our Warranty : 30 Days
