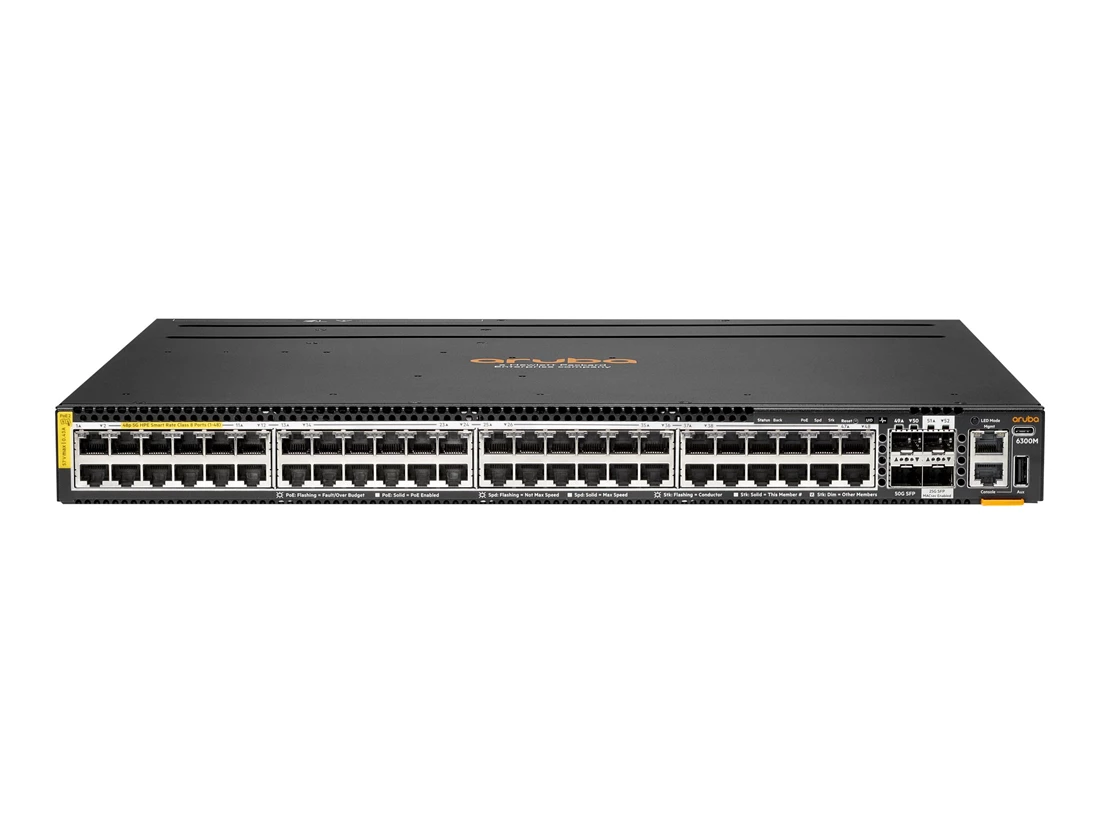

HPE R8S90-61001 Aruba CX 6300M 48p SR 1G/2.5G/5G Cl8 PoE 2p 50G 2p 25G Switch
R8S90-61001
R8S90-61001
R8S90-61001
R8S90-61001
R8S90-61001

HPE R8S90-61001 Aruba CX 6300M 48p SR 1G/2.5G/5G Cl8 PoE 2p 50G 2p 25G Switch

Part Number: R8S90-61001
BRAND: HPE | More NETWORKING from HPE
$3,150.00
Capacity: 48 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

HPE R8S90-61001 Aruba 6300m - Switch - L3 - Managed - 48 X 100/1000/2.5g/5g (poe++) + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit Sfp + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp (uplink / Stacking) - Front And Side To Back - Rack-mountable - Poe++.

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed - Stackable
  • Enclosure Type : Front And Side To Back Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 100/1000/2.5g/5g (poe++) + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit Sfp + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp (uplink / Stacking)
  • Power Over Ethernet (poe) : Poe++
  • Performance : Switching Capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 Μs ¦ Latency (10 Gbps): 1.5 Μs ¦ Latency (25 Gbps): 2.91 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps
  • Capacity : Switched Virtual Interfaces (svis): 1024 ¦ Ipv4 Host Table Capacity: 49152 ¦ Ipv6 Host Table Capacity: 49152 ¦ Ipv4 Routes (unicast): 61000 ¦ Ipv6 Routes (unicast): 61000 ¦ Ipv4 Routes (multicast): 8192 ¦ Ipv6 Routes (multicast): 8192 ¦ Igmp Groups: 8192 ¦ Mld Groups: 8192 ¦ Ipv4 Acl Entries (ingress): 20480 ¦ Ipv6 Acl Entries (ingress): 5120 ¦ Mac Acl Entries (ingress): 20480 ¦ Ipv4 Acl Entries (egress): 8192 ¦ Ipv6 Acl Entries (egress): 2048 ¦ Mac Acl Entries (egress): 8192
  • Mac Address Table Size : 32768 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Ospf, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Msdp, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp
  • Remote Management Protocol : Snmp, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli
  • Encryption Algorithm : Fips 140-2
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, High Availability, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bootstrap Router (bsr) Mechanism, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
  • Processor : 1 X Arm: 1.8 Ghz
  • Ram : 8 Gb Ddr4 Sdram
  • Flash Memory : 32 Gb

    Expansion / Connectivity :
    Interfaces:
  • 48 X 100/1000/2.5g/5g (poe++) Rj-45
  • 2 X 1/10/25gbit Lan Sfp
  • 2 X 10/25/50gbit Lan Sfp
  • 1 X Usb-c Console
  • 1 X Usb Type A Host
  • 1 X Console Rj-45

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1
  • Max Supported Qty : 2
  • Power Redundancy : Optional
  • Power Redundancy Scheme : 1+1 (with Optional Power Supply)
  • Voltage Required : (50/60 Hz)

    Condition : Refurbished
    Availability : In Stock
    Our Warranty : 90 Days
