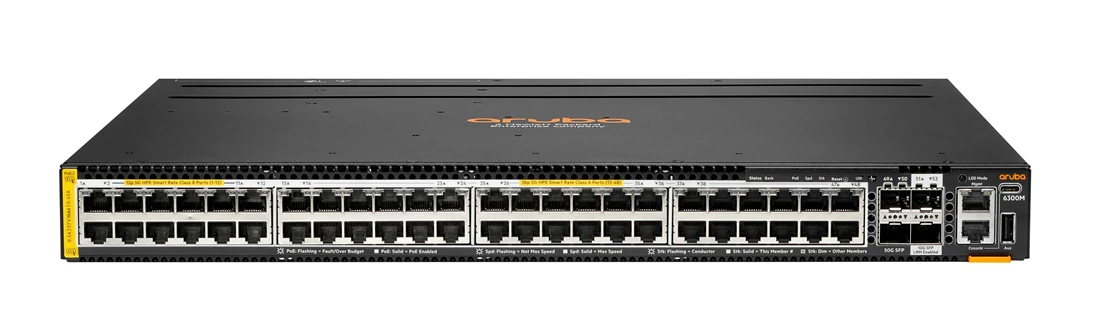

HPE R8S91-61001 Aruba CX 6300M 12p CL8 PoE 36p CL6 PoE SR 1G/2.5G/5G 2p 50G 2p 10G Switch

HPE R8S91-61001 Aruba CX 6300M 12p CL8 PoE 36p CL6 PoE SR 1G/2.5G/5G 2p 50G 2p 10G Switch

Part Number: R8S91-61001
BRAND: HPE | More NETWORKING from HPE
$19,995.00
Capacity: 48 PORT

Quantity :

5% Discount on Checkout
Extra 1% Discount on MobileApp

| Product Overview

HPE R8S91-61001 Aruba 6300m - Switch - L3 - Managed - 48 X 100/1000/2.5g/5g (poe++) + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking) + 2 X 1 Gigabit / 10 Gigabit Sfp+ - Rack-mountable - Poe++

Key Features :

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 48 X 100/1000/2.5g/5g (poe++) + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking) + 2 X 1 Gigabit / 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe++

Performance : Switching Capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Latency (25 Gbps): 1.9 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps

Capacity : Switched Virtual Interfaces (svis): 1024 ¦ Ipv4 Host Table Capacity: 49152 ¦ Ipv6 Host Table Capacity: 49152 ¦ Ipv4 Routes (unicast): 61000 ¦ Ipv6 Routes (unicast): 61000 ¦ Ipv4 Routes (multicast): 8192 ¦ Ipv6 Routes (multicast): 8192 ¦ Igmp Groups: 8192 ¦ Mld Groups: 8192 ¦ Ipv4 Acl Entries (ingress): 20480 ¦ Ipv6 Acl Entries (ingress): 5120 ¦ Mac Acl Entries (ingress): 20480 ¦ Ipv4 Acl Entries (egress): 8192 ¦ Ipv6 Acl Entries (egress): 2048 ¦ Mac Acl Entries (egress): 8192

Mac Address Table Size : 32768 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Msdp, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp

Remote Management Protocol : Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp

Encryption Algorithm : Fips 140-2

Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, High Availability, Sflow, Stp Support, Rstp Support, Pvst, Mstp Support, Acl Support, Qos, Dwrr, Lldp Support, Fan Tray, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Broadcast Storm Protection, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Ztp, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bsr Mechanism, Aruba Vsf, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax, Ieee 802.3bt

Processor : 1 X Arm: 1.8 Ghz

Ram : 8 Gb Ddr4 Sdram

Flash Memory : 32 Gb

Expansion / Connectivity :
Interfaces :

48 X 10/100/1000 Base-t Rj-45

4 X 1gbit/10gbit/25gbit/50gbit Sfp56

1 X Usb-c

1 X Management

1 X Usb Type A

Power :

Power Device : Internal Power Supply - Hot-plug

Installed Qty : 1

Max Supported Qty : 2

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Power Provided : 75 Watt

Voltage Required : (50/60 Hz)

Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
